Relays are most commonly used switching devices used in electronics. It can be used to switch high current loads easily unlike transistors which are limited by the maximum current that can flow through them and also can’t switch AC loads. This 5V 1A Relay Module can switch both AC and DC loads. It is an Electromagnetic switch, when the coil inside is energized with a small current, it can switch ON or OFF the high current circuit. It has PCB screw terminals to directly connect. They can be used in Home automation to switch ON or OFF the appliances, in Electronic circuits to perform switching operations, in safety circuits to disconnect or connect the heavy loads in case of any dangerous situation, in Automobile applications like turning on windscreen wipers, power windows fuel pump, cooling fan etc.
Specifications
Product Description
To use this relay module first you have to decide whether you want to connect or disconnect your load when relay is operated. Connect the load across Common and NC terminal if you want to disconnect the load when relay is operated or across Common and NO terminal if you want to connect the load when relay is operated. Power the Module by 5V supply through Vcc and GND pins, as the coil trigger voltage is 5V, you can connect Control Input Pin to any GPIO pin of 5V operating Arduino like UNO or MEGA and control the relay by your program.
Package Contents

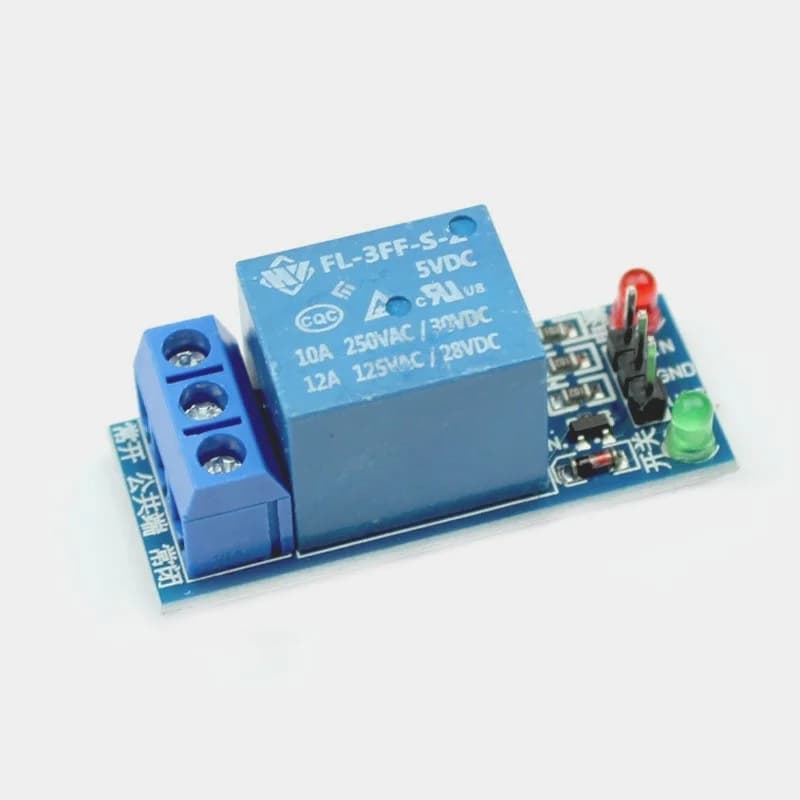

1× 5V 10A Relay Module
| Input/Trigger voltage | 5V |
|---|---|
| Current consumption | 20mA maximum |
| AC load voltage | upto 250V |
| DC load voltage | upto 30V |
| Load current | upto 10A |
