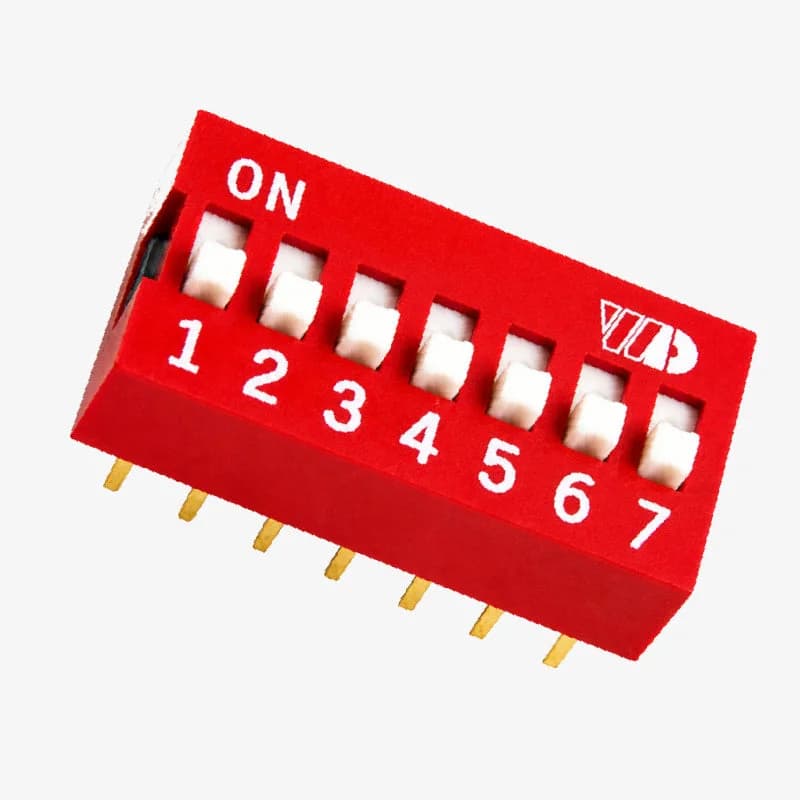

7 Position DIP Switch is designed for reliable manual configuration and signal selection in electronic circuits. Ideal for PCB applications, embedded systems, and DIY electronics projects requiring compact switching solutions.
3 Position DIP Switch
5 Position DIP Switch
9 Position DIP Switch
6 Position DIP Switch
4 Positions DIP Switch
1 x 7 Position DIP Switch
| Product Type | DIP Switch |
|---|---|
| Positions | 7 |
| Mount Type | Surface Mount |
| Terminal Material | Brass with Gold Plating |
| Contact Rating | 100mA 50VDC |
| Contact Resistance | 500mΩ Max |
| Insulation Resistance | 100MΩ Min (500VDC) |
| Dielectric Strength | 500VAC / 1 Minute |
| Operating Temperature | -25°C to +85°C |
| Mechanical Life | ≥100,000 Cycles |
| Electrical Life | 2,000 Cycles per Position |
| Color | Red |
