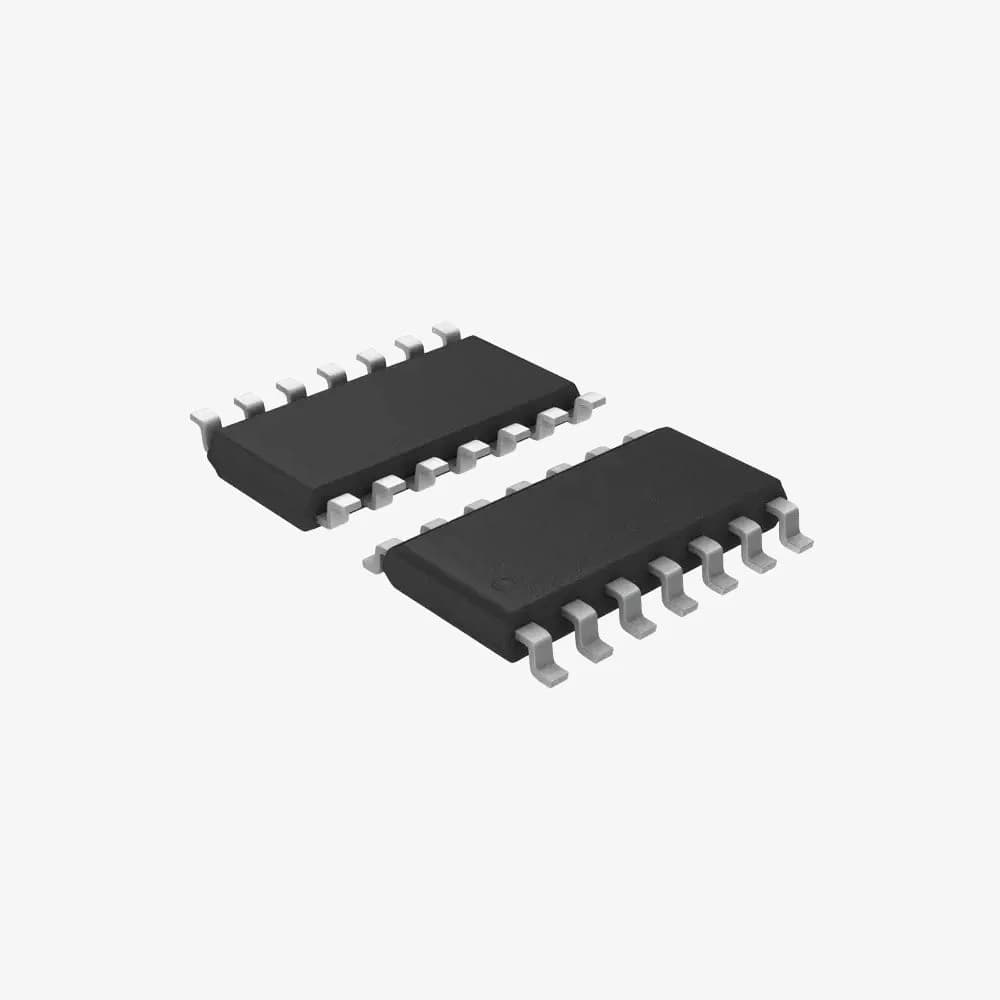

74HC20 - Dual 4-Input NAND Gate IC - SOIC-14 SMD Package

The 74HC20 is dual 4-input NAND gate IC. It include clamp diodes at the inputs, allowing for the use of current limiting resistors to interface with voltages higher than VCC.

Features and Specifications:

• Low-power dissipation
• Input level: CMOS

• Specified operating temperature ranges: -40°C to +80°C and -40°C to +125°C
• Supply Voltage:

• • Min: -0.5V
  • Max: +7V
• Input Clamping Current (max): +20mA
• Output Clamping Current (max): +20mA
• Output Current (max): +25mA
• Supply Current (max): 50mA
• Ground Current (min): -50mA
• Storage Temperature:
  • Min: -65°C
  • Max: +150°C
• Total Power Dissipation (max): 500mW

Package Includes:

1 x 74HC20 - Dual 4-Input NAND Gate IC - SOIC-14 SMD Package

Note: Product images are for illustrative purposes only and may differ from the actual product.
