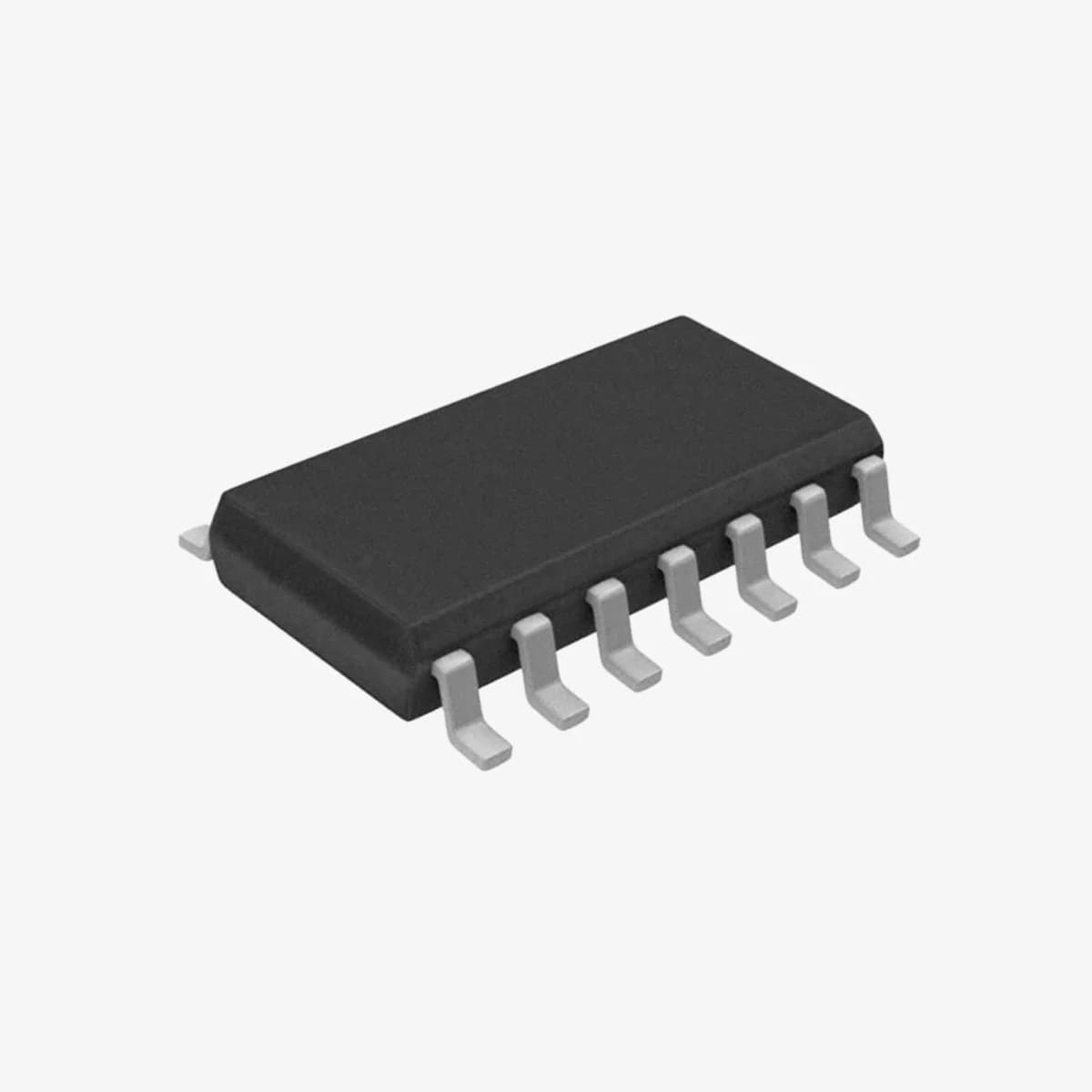

74HC32 Quad 2-Input OR Gate IC - SOIC-14 SMD Package

The 74HC32 is a high-speed CMOS logic IC that consists of four independent 2-input OR gates. It is commonly used in digital logic circuits where OR logic operations are required, such as in combinational logic design, data processing, and signal control. The IC is designed for a wide range of applications and is available in a SOIC-14 SMD package, making it ideal for compact and space-efficient designs.

Features

• Quad 2-Input OR Gates: Contains four independent OR gates, each with two inputs, allowing for multiple logic operations within a single IC.
• High-Speed Operation: Designed for high-speed logic operations, ensuring fast and efficient performance in digital circuits.
• Low Power Consumption: Utilizes CMOS technology, which offers low power consumption, making it suitable for energy-efficient and battery-powered devices.
• Wide Operating Voltage Range: Operates over a broad voltage range from 2V to 6V, providing flexibility in different circuit designs.
• SOIC-14 SMD Package: Compact surface-mount package, ideal for high-density PCB designs and space-constrained applications.

Specifications
