The A733 PNP Transistor - SOT-23 SMD Package is a general-purpose small-signal transistor designed for low-noise amplification and signal switching. With high gain, low saturation voltage, and stable operation, it’s ideal for use in audio amplifiers, signal processing, and low-power switching circuits.

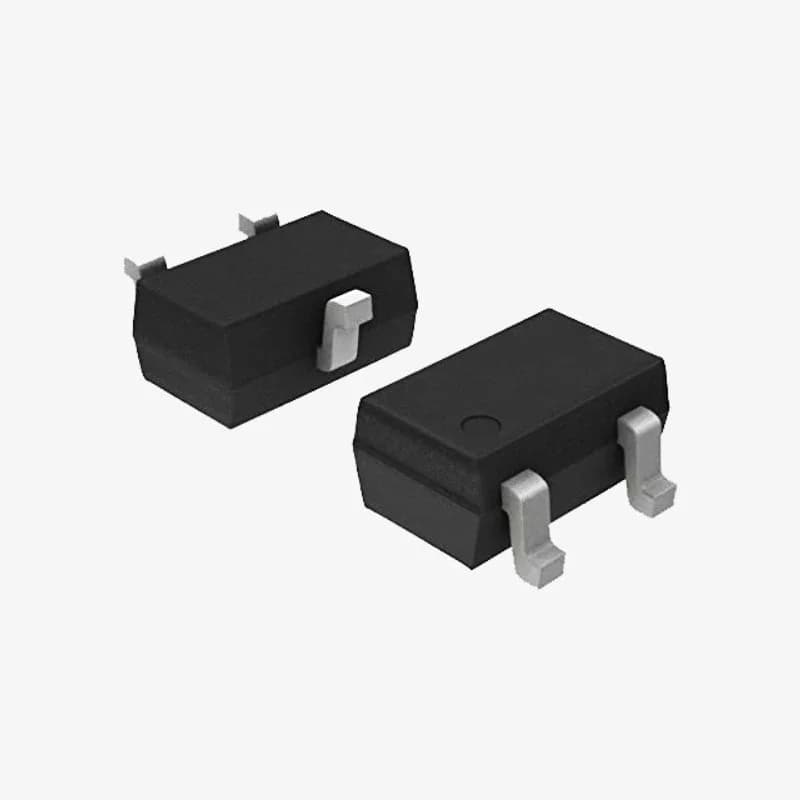

10 × A733 PNP Transistor - SOT-23 SMD Package
| Collector-Base Voltage (VCBO) | -60V |
|---|---|
| Collector-Emitter Voltage (VCEO) | -50V |
| Emitter-Base Voltage (VEBO) | -5V |
| Collector Current (IC) | -150mA |
| Power Dissipation (PC) | 200mW |
| Thermal Resistance Junction-to-Ambient (RθJA) | 625°C/W |
| Operating Junction and Storage Temperature Range (TJ, TSTG) | -55°C to +150°C |
| Collector-Base Breakdown Voltage (V(BR)CBO) | -60V |
| Collector-Emitter Breakdown Voltage (V(BR)CEO) | -50V |
| Emitter-Base Breakdown Voltage (V(BR)EBO) | -5V |
| Collector Cutoff Current (ICBO) | -100nA |
| Emitter Cutoff Current (IEBO) | -100nA |
| DC Current Gain (hFE) at VCE = -6V, IC = -1mA | 120 to 475 |
| Collector-Emitter Saturation Voltage (VCE(sat)) | -0.18V to -0.3V |
| Base-Emitter Voltage (VBE(ON)) | -0.58V to -0.68V |
| Transition Frequency (fT) | 80MHz |
| Output Capacitance (Cob) | 4.5 to 7pF |
| Noise Figure (NF) | 6 to 20dB |
