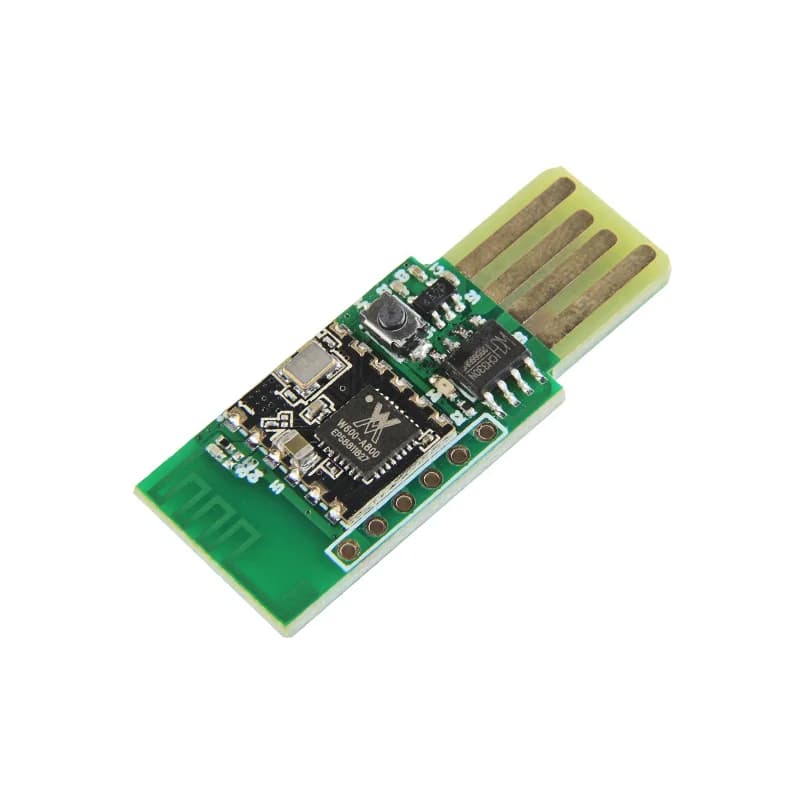

Air602 WiFi Development Board

The Air602 WiFi Development Board is based on the Air602 Wi-Fi module and an integrated USB interface and Antenna. If you plug this board into your computer, it will be recognized as a Ports (COM & LPT), so that you can code it with Serial port tool. This module support IEEE802.11b/g/n and AT command. Applications: Intelligent home appliances. Smart home. Wireless audio and video. Smart toys. Medical monitoring. Industrial control. Other Internet of Things applications. Functional block diagram: Useful Links: Tutorial Package Includes: 1 x Air602 WiFi Development Board.

Specifications

Item Type:	Other IoT Boards
Operating Voltage (VDC):	3.3
WiFi Mode	IEEE802.11b/g/n
Frequency Range (GHz):	2.4 ~ 2.4835
Modulation Type:	DSSS, OFDM, DBPSK, DQPSK, CCK, QAM16/64
Interface:	UART, SPI, GPIO
Network Type	STA/AP/AP+STA/Wi-Fi Direct
Operating Current (mA):	110mA（PS Mode 35mA，DTIM = 1
Operating Temperature (°C):	‐40 ~ +85
Storage Temperature (°C):	‐40 ~ +125
Length (mm):	38.5
Width (mm):	16
Weight (g):	3
Shipping Weight	0.005 kg
Shipping Dimensions	4 × 2 × 1 cm
