| Model | M10 |
|---|---|
| Sensitivity | -167 dBm tracking |
| Start Time | Cold start in 26s; hot start in 1s |
| Accuracy | 2.0 m horizontal |
| Protocols | NMEA-0183 and UBX |
| Temperature Range | -40 °C to +85 °C |

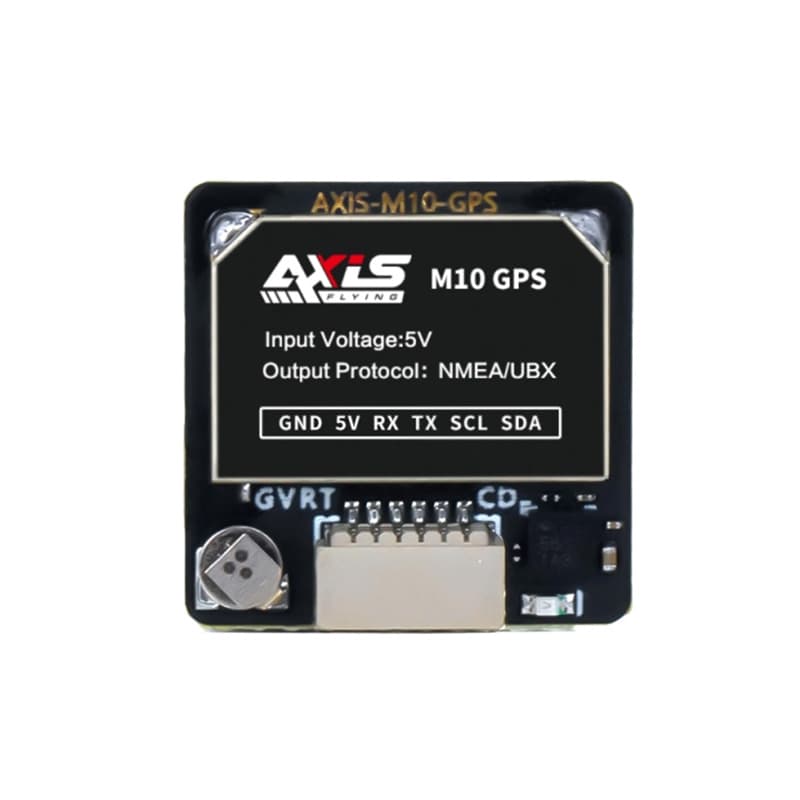

| Model Name: | M10 GPS |
| Tracking Sensitivity (dBm) | -167 |
| Baud Rate (bps) | 4800-921600 (default: 38400) |
| Output Level | 3.3V TTL |
| Output Protocol | NMEA-0183 Protocol / UBX Protocol |
| Update Frequency(Hz) | 1Hz-10 (default: 1) |
| Flash Memory (MB): | 4 |
| Speed Limit | <515 m/s |
| Current Consumption (mA): | Normal: 50mA/5.0V |
| Operating Voltage (VDC): | 3.6V-5.5V (typical: 5.00V) |
| Dimensions (L x W x H) mm | 20mm x 20mm x 6mm |
| Weight (g): | 12 |
| Connector: | SH1.0-6P |
| Compass | Internal electronic compass (QMC5883) |
| Operating Temperature (°C): | -40 °C to +85 °C |
| Shipping Weight | 0.025 kg |
| Shipping Dimensions | 7 × 5 × 2 cm |
