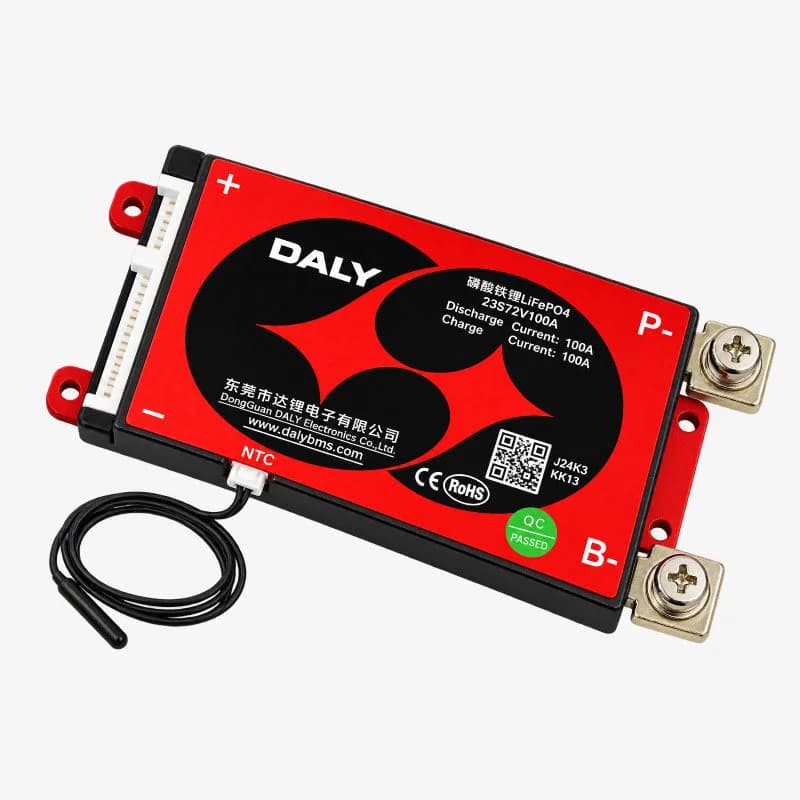

DALY LiFePo4 23S 72V 100A is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePo4 battery packs. It employs an A-level protective integrated circuit (IC) that ensures robust safety and efficient performance. Its high load capability with a 100A continuous discharge current makes it an ideal solution for high-demand battery applications. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, while an integrated heat sink significantly aids in cooling.
DALY LiFePo4 23S 72V 100A Waterproof Battery BMS Features:
Package Includes:
1 x DALY LiFePo4 23S 72V 100A Waterproof Battery Management System - BMS Protection Board
| Model | LiFePo4 23S 72V 100A |
|---|---|
| Charge Voltage (V) | 83.95 |
| Charge Current (A) | 50 |
| Balance Current (mA) | 30±5 |
| Balance Detect Voltage (V) | 3.50 |
| Working Current (uA) | 500 |
| Overcharge Detect Voltage (V) | 3.70±0.05 |
| Overcharge Release Voltage (V) | 3.65±0.05 |
| Over Discharge Detect (V) | 2.2±0.1 |
| Over Discharge Release (V) | 2.5±0.1 |
| Working Temperature Range (°C) | -20 to 70 |
| Cable Size (AWG) | 7 |
| Length (mm) | 166 |
| Width (mm) | 65 |
| Height (mm) | 24 |
