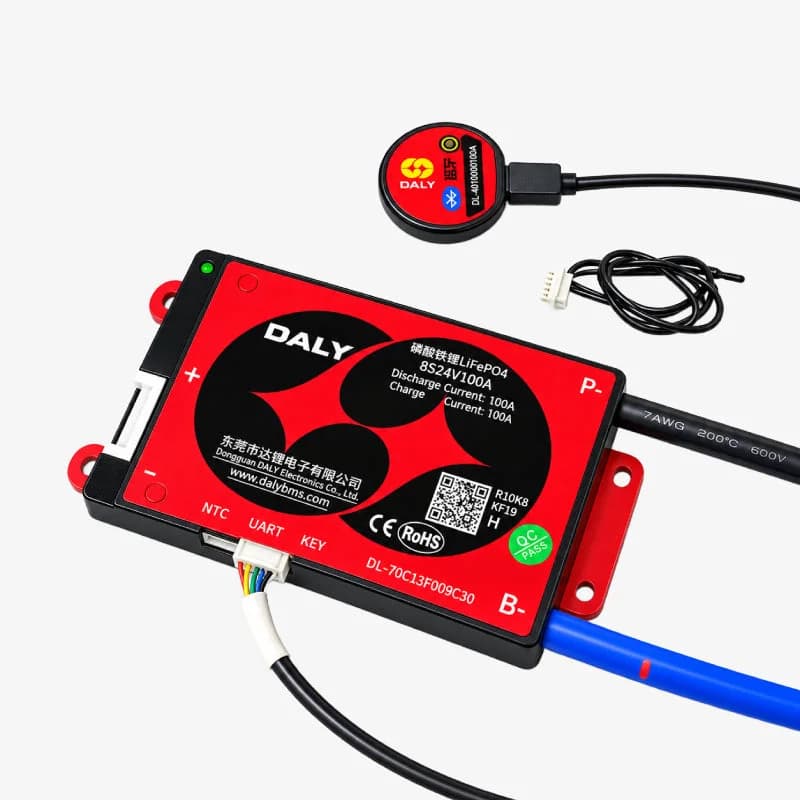

DALY LiFePO4 8S 100A is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePO4 battery packs. It utilizes an A-level protective integrated circuit (IC) to ensure robust safety and efficient performance. With a 100A continuous discharge current, it is an ideal solution for high-demand applications that require reliable power. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, and its integrated heat sink significantly enhances cooling performance, ensuring the system operates safely even under high loads.
DALY LiFePO4 8S 100A Waterproof BMS Features:
Package Includes:
1 x DALY LiFePO4 8S 100A Waterproof Battery Management System - BMS Protection Board
| Model | LiFePO4 8S 100A Waterproof |
|---|---|
| Charge Voltage (V) | 29.2V |
| Charge Current (A) | 50A |
| Balance Current (mA) | 30±5 |
| Balance Detect Voltage (V) | 3.50V |
| Working Current (uA) | 100uA |
| Overcharge Detect Voltage (V) | 3.65V ±0.05 |
| Overcharge Release Voltage (V) | 3.50V ±0.05 |
| Over-Discharge Detect Voltage (V) | 2.00V ±0.1 |
| Over-Discharge Release Voltage (V) | 2.50V ±0.1 |
| Working Temperature Range (°C) | -20°C to 60°C |
| Length (mm) | 125mm |
| Width (mm) | 65mm |
| Height (mm) | 13mm |
