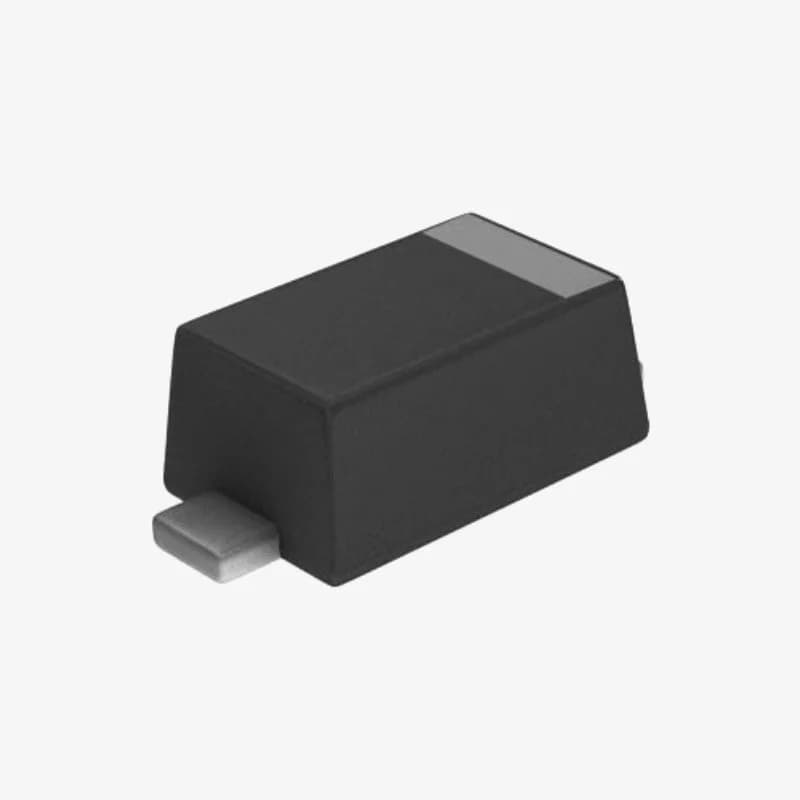

The DFR1M Fast Recovery Rectifier Diode - SOD-123 SMD Package is designed for efficient AC to DC rectification in compact surface-mount applications. Its low-profile SOD-123 package and glass passivated chip junction ensure reliable performance with low forward voltage drop, minimal leakage, and high surge tolerance. Ideal for power supplies, inverters, and automated assembly circuits.
CLICK HERE FOR DATASHEET
10pcs × DFR1M Fast Recovery Rectifier - SOD-123 SMD Package
| Maximum Repetitive Peak Reverse Voltage (VRRM) | 1000 V |
|---|---|
| Maximum RMS Voltage (VRMS) | 700 V |
| Maximum DC Blocking Voltage (VDC) | 1000 V |
| Maximum Average Forward Rectified Current (IF(AV)) | 1.0 A |
| Peak Forward Surge Current (IFSM) | 25 A |
| Maximum Instantaneous Forward Voltage (VF) at 1 A | 1.3 V |
| Maximum Reverse Current (IR) at 25°C | 5 µA |
| Maximum Reverse Current (IR) at 125°C | 50 µA |
| Reverse Recovery Time (trr) | 500 ns |
| Operating Temperature Range (TJ, TSTG) | -55°C to +150°C |
