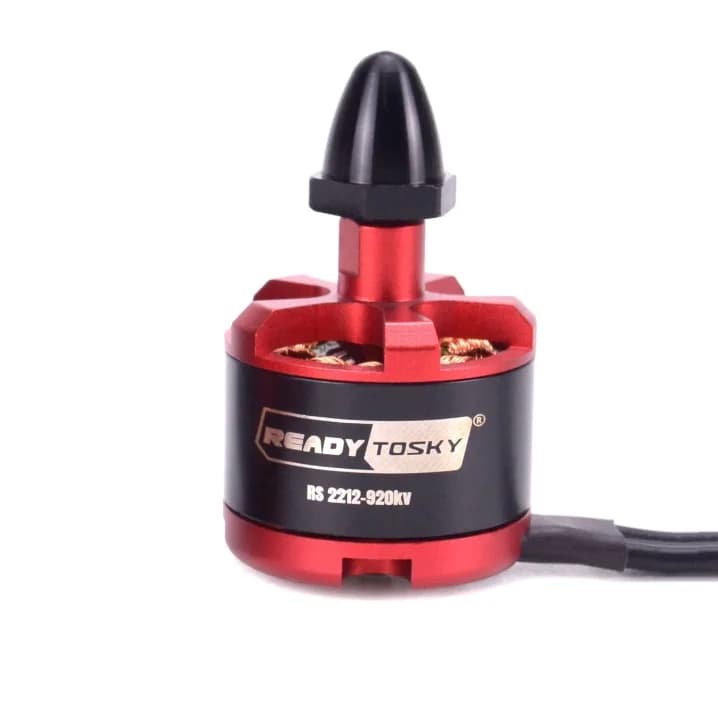

DJI 2212 920KV Brushless DC Motor for Drone with Black Cap (CW Motor Rotation)

In the field of Multirotors, there are so many brands that are making drone motors but Ready to Sky is giving us the best quality of drone motor at an affordable price.

Ready to Sky brand gained more popularity in the market due to the highest standards for optimal performance and reliability.

Note:

Features :

1. DJI 2212 CW Brushless Motor Stable Performance
2. DJI 2212 CW Brushless Motor The design of the 2212 920KV  is capable of withstanding competitional conditions.
3. DJI 2212 CW Brushless Motor Comes in a compact size
4. DJI 2212 CW Brushless Motor Offers great performance and value for money
5. DJI 2212 CW Brushless Motor  motor offers 0.5 kg of thrust

---

Package Includes :

DJI 2212 CW Brushless Motor 1 x 2212 920KV Brushless Motor for DJI
DJI 2212 CW Brushless Motor 1 x Black Cap

🌬️ Motor Cooling and Thermal Behavior

The DJI 2212 920KV is designed for continuous, low-RPM operation, which helps it:

• Stay cool even in longer flights (10–15 minutes)

• Run efficiently with larger slow-fly props (e.g., 1045)

• Work without active cooling (no fan needed)

Passive cooling features:

• Vented bell for airflow

• Aluminum housing for heat dissipation

• Stator windings coated for thermal resistance

🔥 If you're running 4S batteries or 10" props, monitor ESC & motor temps using telemetry or a temperature gun to prevent overheating.

---

🔌 Wiring & Connection

• Comes with three pre-tinned wires (or sometimes 3.5mm bullet connectors)

• Connects to any 3-phase ESC (SimonK, BLHeli, etc.)

• Wire order doesn’t matter initially – to reverse spin direction, swap any two wires

Color Code (usually):

• Red: Phase A

• Yellow: Phase B

• Black: Phase C

🧪 Pro Tip: Always test motor rotation direction before mounting the propeller.

---

🛠️ Thrust-to-Weight Design Example (Quadcopter)

Build Setup:

• Frame: DJI F450

• Motors: 4 × 2212 920KV (CW + CCW)

• Props: 1045

• ESCs: 30A

• Battery: 3S 4000mAh 30C

Expected Performance:

• Each motor ~1000g thrust

• Total thrust = 4000g

• All-up weight (AUW) = ~1500g

• Thrust-to-weight ratio = 2.6:1 ➜ ✅ Good for stable flying + light payload

---

🧰 Upgrade Path Suggestions

---

📦 Combo Kit Ideas for Beginners (Plug & Fly)

A practical bundle could include:

• 4 × DJI 2212 920KV motors (2 CW + 2 CCW)

• 4 × 1045 propellers (CW + CCW)

• 4 × 30A ESCs (pre-soldered if possible)

• 1 × F450 Frame

• 1 × APM or Pixhawk Flight Controller

• 1 × 3S 4000mAh LiPo battery + XT60 connector

💡 This makes a complete, stable GPS drone kit for students or hobbyists.

---

🎓 Use Cases Beyond Drones

• Wind tunnel experiments (slow prop spin at fixed RPM)

• Aerial robotics research (e.g., swarm flight tests)

• Custom flying machines (VTOL tilt rotors, hexacopters)

• Payload drop drones (with controlled descent stability)

---

🛑 Common Mistakes to Avoid

---

🧪 Advanced Performance Insights

🔧 KV Behavior:

• KV (920) = 920 RPM per volt

• On a 3S (11.1V) battery:
  → No-load RPM ≈ 10,212

• On a 4S (14.8V) battery:
  → No-load RPM ≈ 13,616

💡 Actual load RPM will be ~80% of theoretical due to resistance, prop drag, and current limits.

---

⚖️ Motor Efficiency & Flight Time Estimate

🧠 Flight time varies with payload, weather, altitude, and flying style.

---

🔄 Motor Spin Layout for Quadcopters

Correct motor layout is essential for stable flight — always check using your flight controller’s motor test tool.

---

🧱 Build Compatibility – Frame Types

---

🧰 Maintenance & Longevity Tips

• After every 5–10 flights:

  • Check for propeller cracks or looseness

  • Clean motor bell housing (dust/grit can damage bearings)

  • Ensure wires are not rubbing against spinning parts

• Every 20+ flights:

  • Listen for noisy bearings → replace if needed

  • Check solder joints or bullet connectors for corrosion

• Avoiding burnout:

  • Don’t overload with 11”+ props

  • Don’t exceed 4S input

  • Use quality ESCs with proper current handling

---

🛒 Market Trends & Real-World Use

• One of the most widely used motors in F450 kits and APM builds

• Common in India’s drone education market (DIY kits, student projects)

• Used in low-cost survey drones for agriculture or aerial mapping

• Preferred by beginners for:

  • Affordability

  • Availability

  • Documentation support

  • Forgiving handling

---

🔗 Alternate Names / SKU References

When shopping or listing online, this motor may appear as:

• DJI 2212 CW 920KV Motor

• CW Motor with Black Nut for DJI Drone

• DJI Original 2212 920KV Brushless Outrunner Motor (CW)

• DJI Compatible Motor for F450/F550 Drone

• 2212/920KV CW (Black Cap) Quadcopter Motor

---

🧰 Suggested Full Quadcopter Build (Example)

This build supports basic aerial photography, waypoint flight, RTL, loiter, and telemetry via Mission Planner.
