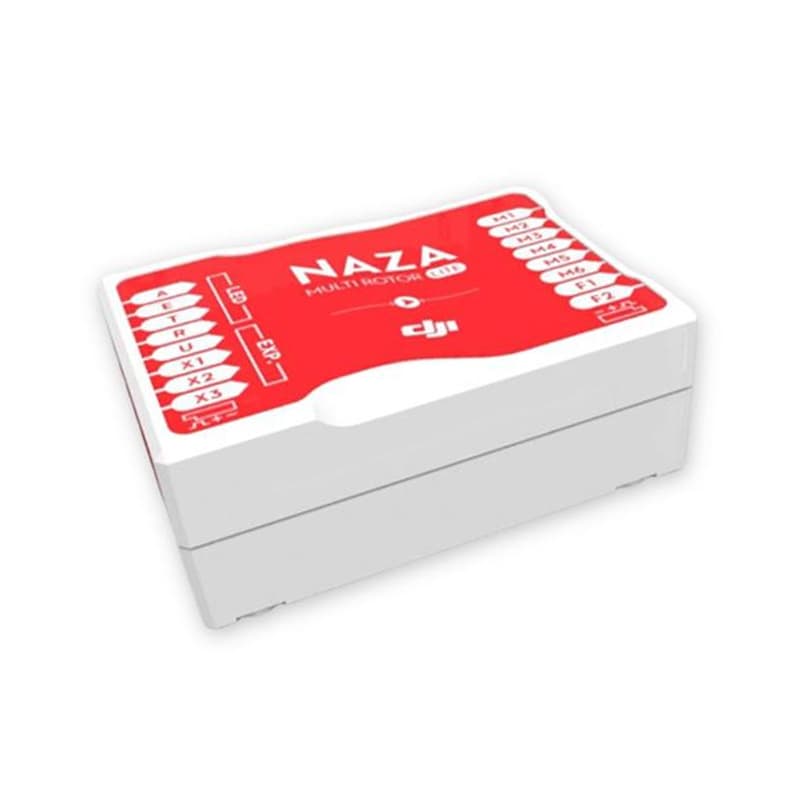

DJI NAZA-M Lite V1.1 with GPS Kit

Supported Multi-Rotor: Quad-rotor I4, X4 / Hex-rotor I6, X6, IY6, Y6. Supported ESC Output: 400Hz refresh frequency. Recommended Transmitter: PCM or 2.4GHz with minimum 4 channels. Power Consumption: MAX1. 5W (0.3A@5V) Normal:0.6W (0.12A@5V). Weight: MC:25g; VU:20g; GPS:21.3g. All-in-One Design. Advanced attitude stabilized Algorithm. Multiple flight control mode/intelligent switching. GPS Module Available/Accurate Position hold. Intelligent Orientation Control (IOC). Failsafe mode.

Specifications

Supported Multi-Rotor	Quad-rotor I4, X4 / Hex-rotor I6, X6, IY6, Y6.
Supported ESC Output	400Hz refresh frequency.
Recommended Transmitter	PCM or 2.4GHz with minimum 4 channels.
Power Consumption	MAX1. 5W (0.3A@5V) Normal:0.6W (0.12A@5V).
Weight	MC:25g; VU:20g; GPS:21.3g.
Item Type:	Flight Controller
Weight (g):	MC: 25gm; VU: 20gm; GPS: 21.3gm
Dimensions (L x W x H) mm	MC: 45.5mm x 31.5mm x 18.5mm; VU: 32.2mm x 21.1mm x 7.7mm; GPS & Compass: 46mm(diameter)x9mm
Operating Voltage	MC: 4.8V~5.5V; VU: 7.2V ~ 26.0 V (recommend 2S ~ 6S LiPo)
Power Consumption (W):	MAX1. 5W (0.3A@5V) Normal:0.6W (0.12A@5V)
Operating Temperature (°C):	-10°C ~ 50°C
UPC	1.90E+11
Shipping Weight	0.1 kg
Shipping Dimensions	12 × 9 × 4 cm
