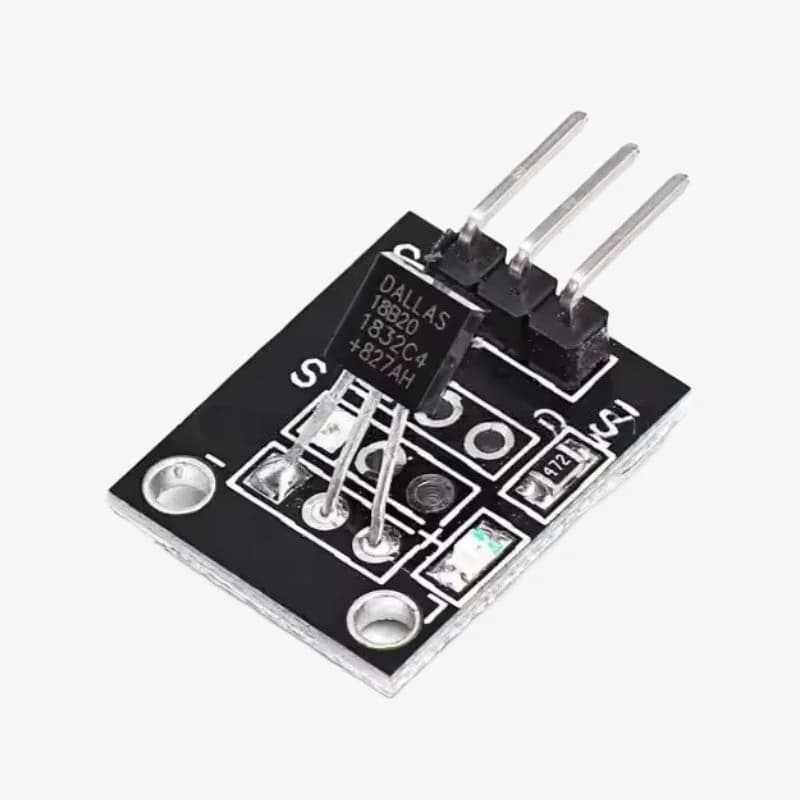

The DS18B20 Temperature Sensor Module is a digital temperature sensor that provides high-accuracy readings using a 1-Wire communication protocol. It is ideal for applications requiring precise temperature monitoring, such as weather stations, industrial automation, and home automation projects. The module is designed for easy integration withArduino, Raspberry Pi, and other microcontrollers.
Features of DS18B20 Temperature Sensor Module:
Package Includes:
1 × DS18B20 Temperature Sensor Module
| Operating Voltage | 3.0V - 5.5V DC |
|---|---|
| Temperature Measurement Range | -55°C to +125°C |
| Accuracy | ±0.5°C (from -10°C to +85°C), ±2°C for extreme ranges |
| Resolution | 9-bit to 12-bit (programmable) |
| Output Signal | Digital (temperature in °C) |
| Response Time | 750ms for full resolution |
| Connection Type | 3-pin interface (VCC, GND, Signal) |
| Dimensions | Compact PCB with mounting holes |
