The EE16 High-Frequency SMPS Transformer is a compact and efficient transformer designed for use in switch-mode power supplies (SMPS) with power ratings up to 10 watts. Built with a PC40 core and high-grade copper windings, it offers reliable isolation and stable voltage conversion. Its wide operating frequency range makes it suitable for a variety of applications in AC-DC or DC-DC converters, adapters, and power modules.
Features of EE16 SMPS 10W Transformer:
Package Includes:

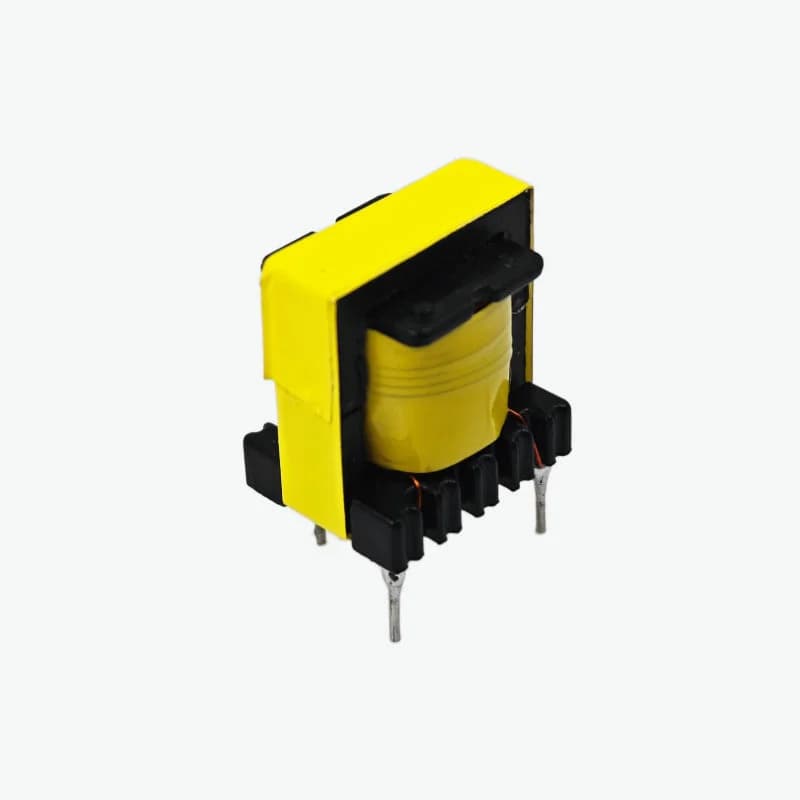

1 × EE16 SMPS High Frequency 10 Watt PCB Mount Transformer
| Model Number | EE16 |
|---|---|
| Core Material | PC44 |
| Phase | Single |
| Power Rating | 10 Watts |
| Primary Inductance | ~1.0mH |
| Turns Ratio | 90:11 |
| Working Frequency | 20kHz ~ 500kHz |
| Winding Material | High-Grade Copper |
| Temperature Range | -15°C to +105°C |
| No. of Poles | 5 Pin |
| Mounting Style | Through Hole |
| Dimensions(L×B×H) | 16.3 x 12.5 x 19 mm |
| Note | It is a switching power supply power transformer and can not be used directly with 220V 50Hz. Direct connection with 50Hz AC will burn the transformer. |
