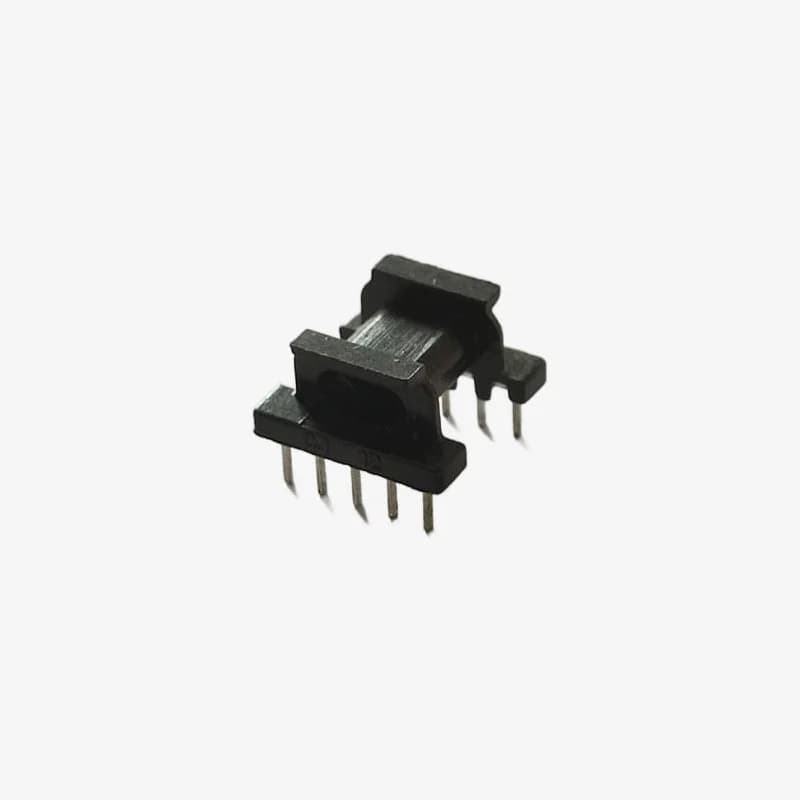

EFD15 Transformer Bobbin - Horizontal 10 Pin

The EF15 Transformer Horizontal Bobbin (10 Pin) is designed for compact and high-frequency transformers used in switch-mode power supplies (SMPS) and DC-DC converters. With its horizontal, low-profile configuration, it is particularly well-suited for applications with limited space. The 10-pin design offers flexibility in winding configurations, ensuring efficient transformer performance in compact circuits.

Features:

• Pin Configuration: 10 pins, providing adaptable winding options for versatile transformer designs.
• Horizontal Design: Low-profile, space-saving horizontal layout, ideal for compact applications.
• High-Quality Material: Made from durable, high-temperature thermoplastic, offering superior electrical insulation.
• Optimized Winding: Designed for efficient winding, helping to minimize the size of the transformer without sacrificing performance.
• Mounting Type: Through-hole mounting for secure and straightforward integration into PCB designs.
• Thermal Stability: Designed to handle high-temperature environments, making it suitable for high-frequency applications.

Specifications
