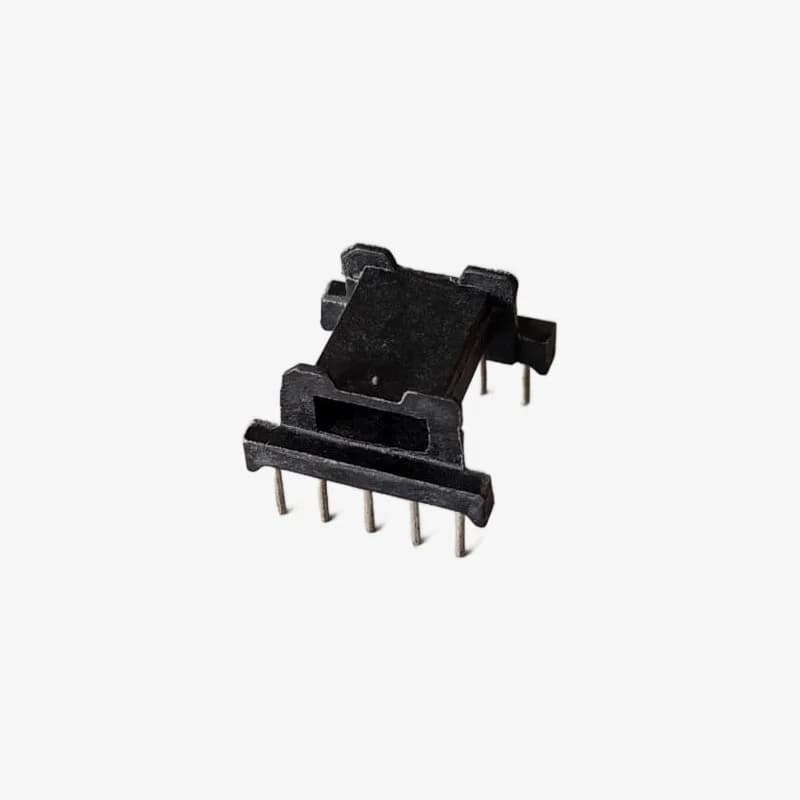

EFD20 Transformer Bobbin - Horizontal 10 Pin

The EF20 Transformer Horizontal Bobbin (10 Pin) is designed for high-frequency transformers used in applications such as switch-mode power supplies (SMPS) and other power conversion systems. The horizontal layout and 10-pin configuration make it an excellent choice for space-saving designs. This bobbin ensures efficient winding of transformer coils, offering excellent performance in compact circuits.

Features:

• Pin Configuration: 10 pins, providing flexible winding options for different transformer designs.
• Horizontal Design: Low-profile horizontal structure, ideal for space-constrained applications.
• High-Quality Material: Constructed from durable thermoplastic material with high thermal stability and electrical insulation.
• Efficient Winding: Optimized for compact and efficient winding of coils, reducing the overall transformer size.
• Mounting Type: Through-hole mounting for secure attachment to PCBs.
• Thermal and Electrical Stability: Suitable for high-frequency, high-temperature environments, ensuring reliable transformer operation.

Specifications
