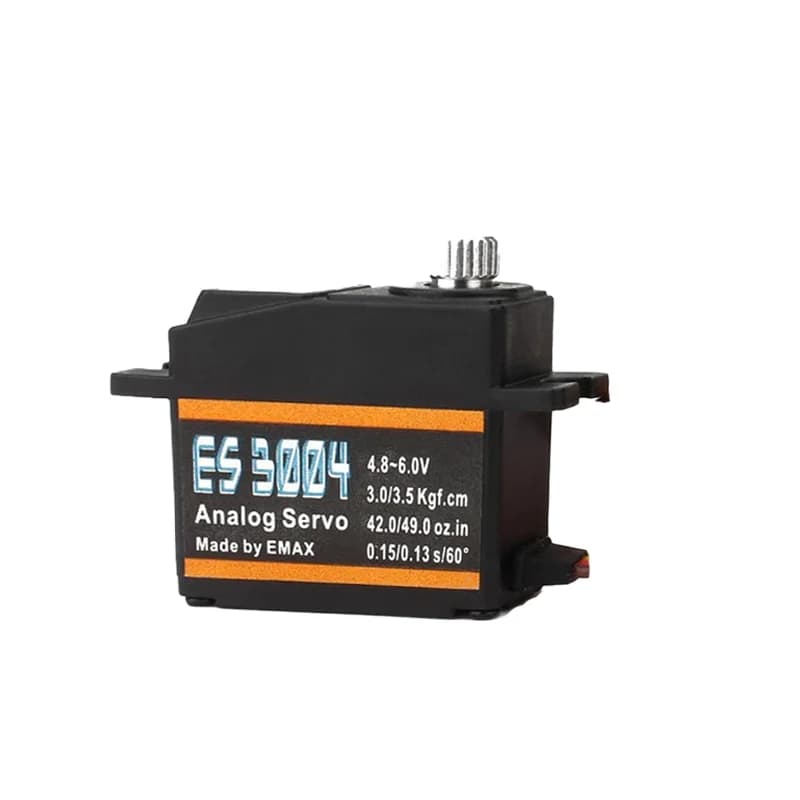

EMAX ES3004 17g 3.5kg 0.13sec 23T Metal Gear Analog Servo For RC Airplane ES3104 upgrade-(original)

EMAX ES3004 17g 3.5kg 0.13sec 23T Metal Gear Analog Servo For RC Airplane ES3104 upgrade Weighing in at 20 grams, The Emax ES3004 Analog Servo is ready to perform! Its beefy, metal drive train will make short work of moving your control surfaces with its 3.5kg of output torque. Package Includes: 1 x EMAX ES3004 17g 3.5kg 0.13sec 23T Metal Gear Analog Servo1 x Servo horns and Accessories Set

Specifications

Operating Voltage	4.8V – 6.0V
Torque	3.0 / 3.5kgf.cm
Rate	0.15 / 0.13 s / 60 degrees
STD Direction	Counter Clockwise/ Pulse travelling 1500 to 1900 μsec
Gears	Metal Gears
Model No. / Name:	ES3004
Operating Voltage (VDC):	4.8 to 6
Operating Speed @4.8V	0.15 sec/60° at no load
Stall Torque @ 4.8V (Kg-Cm)	3
Operating Speed @6V	0.13 sec/60° at no load
Stall Torque @6V (Kg-Cm)	3.5
Gear Type	Metal
Servo Plug	FUT;JR
Length (mm):	28.45
Width (mm):	13
Weight (g):	17
Shipping Weight	0.07 kg
Shipping Dimensions	3 × 2 × 3 cm
