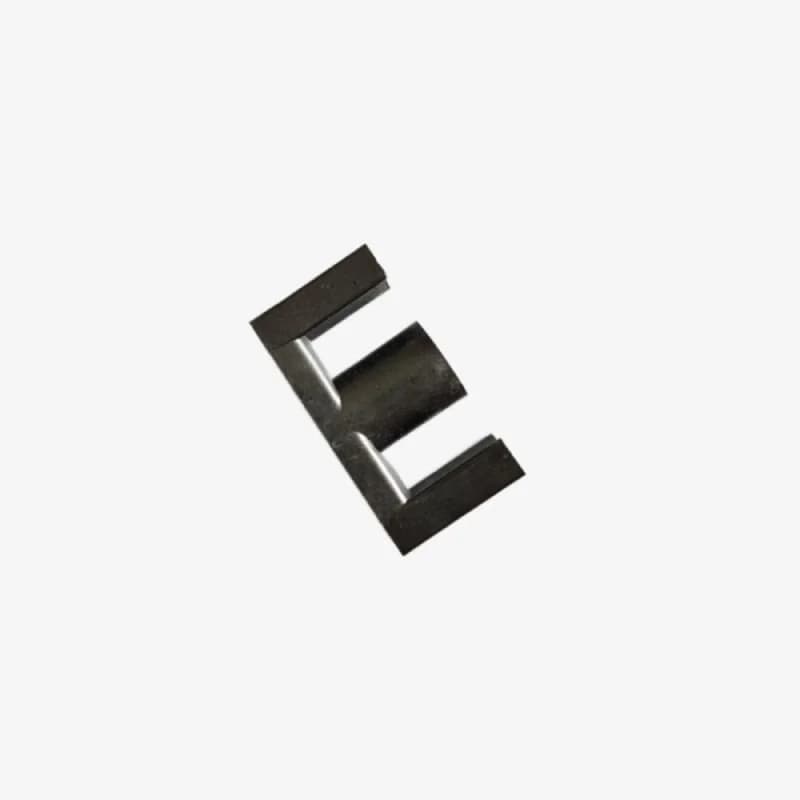

The ETD29/16/10 Ferrite Transformer Cores are engineered for high-efficiency transformers in power conversion systems, such as switch-mode power supplies (SMPS), inverters, and high-frequency inductors. The ETD core design allows for a compact yet effective transformer solution, providing excellent magnetic performance while minimizing core losses in high-frequency operations.
Package Includes:
2 x ETD29/16/10 Ferrite Transformer Core
| Core Type | ETD29/16/10 |
|---|---|
| Material | High-quality ferrite (typically N87, N97, or equivalent material optimized for low losses) |
| AL Value | Approximately 1600 nH (varies based on material grade) |
| Operating Frequency | Typically supports frequencies ranging from 20 kHz to 500 kHz. |
| Dimensions | Standard ETD29/16/10 dimensions: Outer Diameter: 29 mm Height: 16 mm Inner Diameter: 10 mm |
| Outer Diameter | 29 mm |
| Height | 16 mm |
| Inner Diameter | 10 mm |
| Applications | Commonly used in SMPS transformers, DC-DC converters, inductors, and other high-frequency power systems. |
