The GBJ2010 Bridge Rectifier 20A is a high-current through-hole rectifier designed for AC to DC conversion in demanding power applications. Built with a glass-passivated die and UL 94V-0 flame-rated molded plastic body, it ensures excellent surge capability and thermal reliability. Ideal for use in power supplies, inverters, motor drives, and UPS systems.

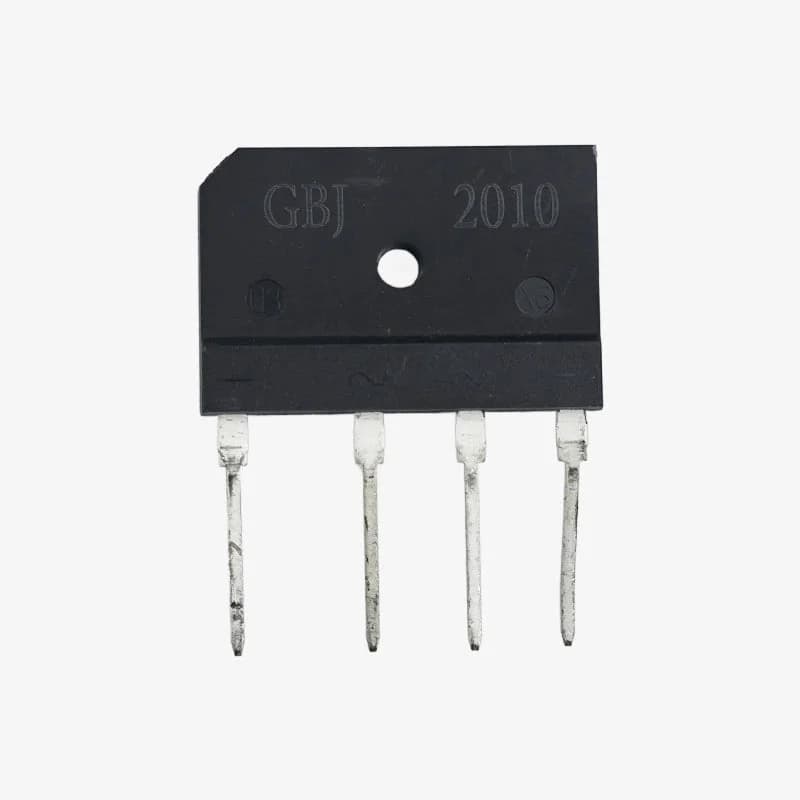

1 × GBJ2010 20A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
| Average Forward Current (IF(AV)) | 20A (TC = 110°C) |
|---|---|
| Peak Repetitive Reverse Voltage (VRRM) | 1000V |
| Working Peak Reverse Voltage (VRWM) | 1000V |
| DC Blocking Voltage (VR) | 1000V |
| RMS Reverse Voltage (VR(RMS)) | 700V |
| Peak Forward Surge Current (IFSM) | 240A (8.3ms half-sine wave) |
| Forward Voltage (VF) | 1.05V at IF = 10A |
| Reverse Current (IR) at 25°C | 10µA |
| Reverse Current (IR) at 125°C | 500µA |
| Thermal Resistance Junction-to-Case (RθJC) | 0.8°C/W |
| Typical Junction Capacitance (Cj) | 60pF |
| Operating Junction Temperature (TJ) | -55°C to +150°C |
| Storage Temperature (TSTG) | -55°C to +150°C |
