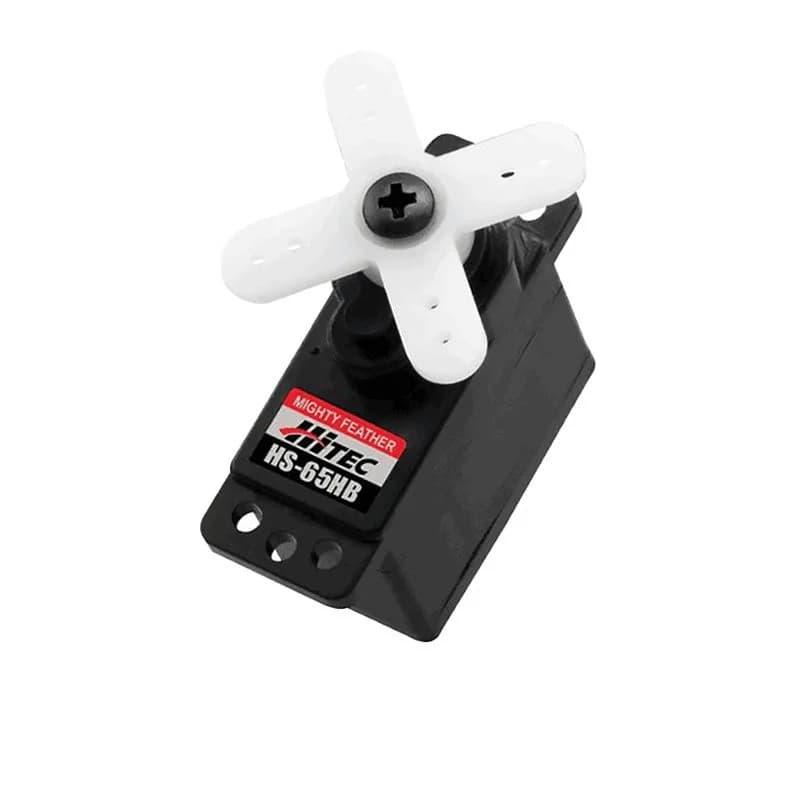

HiTec HS-65HB Mighty Karbonite Feather Servo

Here comes HiTec HS-65HB Mighty Karbonite Feather Servo, a product from the HiTec brand. Considered one of the most powerful servos in the micro class, the HiTec HS-65HB is offered with a choice of “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 26 ounces/inches of power at 6 volts, and is an excellent choice for higher-performance micro helicopters, electric park flyers, and 1/18 scale cars. Note: The accessories horn set is usually black in color. Please note that the color & the accessories set can be different from the image shown depending on the availability. Features: Premium Feather Servo High-Performance Three-Pole Motor Rugged Karbonite Gear for Added Durability Ball Bearing-Supported Output Shaft High Torque and High Speed Package Includes: 1 x HiTec HS-65HB Mighty Karbonite Feather Servo1 x Accessories Set with Applicable Horns

Specifications

Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.16 ~ 0.13
Maximum Torque Range oz. / in.	22 ~ 26
Motor Type	3 Pole Metal Brush Neodymium
Gear Material	Karbonite
Output Shaft (type / Ømm)	Feather 15 / 8
Item Type:	Karbonite Servo, Feather Servo
Model No. / Name:	HS-65HB
Speed (Second @ 60°):	0.13 to 0.16
Operating Voltage (VDC):	4.8 to 6
Gear Material:	Karbonite
Max. Torque (oz./in.)	22 ~ 26
Max. Torque (kg/cm)	1.6 ~ 1.9
Idle Current	7.7 mA
No Load Current (mA)	220 mA
Stall Current Draw (mA):	1,200 mA
Dead Band Width (uS):	5 µs
Motor Type:	3 Pole Metal Brush Neodymium
Output Shaft Diameter (mm)	Feather 15 / 8
Dimensions (L x W x H) mm	23.37 x 11.43 x 23.88 mm.
Weight (g):	11.2
Shipping Weight	0.016 kg
Shipping Dimensions	7 × 5 × 3 cm
