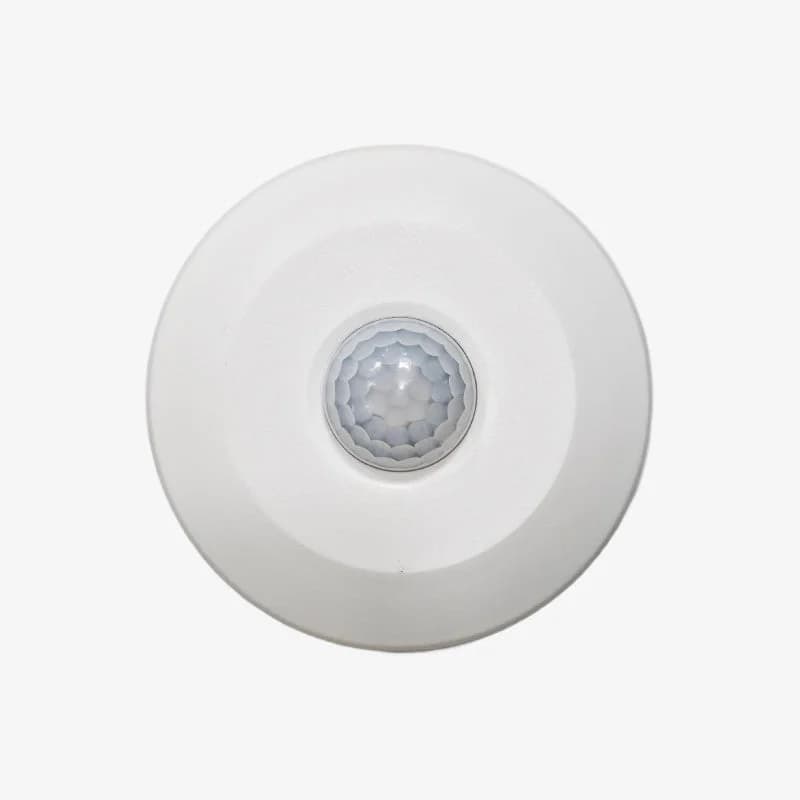

The Human Infrared Ceiling Mount PIR Motion Sensor Module provides automatic motion-activated switching for lights and small appliances. Its infrared sensing detects human movement across a full 360° area with consistent accuracy. Adjustable delay and lux controls let you set exactly when the sensor should activate, keeping everyday use simple and efficient.
1 × Human Infrared Ceiling Mount PIR Motion Sensor Module 220 - 240V AC 100W
| Power Sourcing | 220V~240V AC |
|---|---|
| Power Frequency | 50 Hz |
| Ambient Light | <10~1000 LUX Adjustable |
| Time Delay | Min 10sec±3 sec / Max 7 min±2min |
| Rated Load | 100W Incandescent Lamp / 100W Energy-saving Lamp |
| Detection Range | 360° |
| Working Temperature | -20°C~+40°C |
| Working Humidity | <93% RH |
| Installing Height | 2.2~4 m |
| Detection Motion Speed | 0.6~1.5 m/s |
| Detection Distance | Max 6m (<24°C) |
