Jiabaida (JBD) LiFePO4 4S 3.2V 40A Battery Management System - BMS Protection Board is designed to protect and manage 4S LiFePO4 battery packs with stable performance and multiple safety protections. Ideal for energy storage systems, electric vehicles, and DIY battery pack applications.

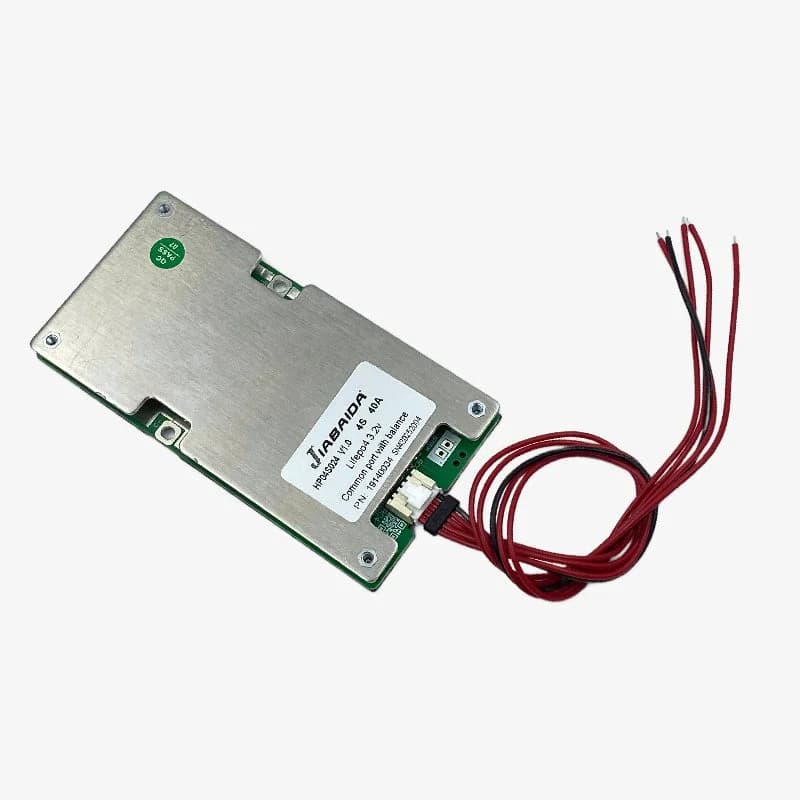

1 x Jiabaida (JBD) LiFePo4 4S 3.2V 40A Battery Management System - BMS Protection Board
| Brand | Jiabaida (JBD) |
|---|---|
| Battery Type | LiFePO4 |
| Configuration | 4S (12.8V Nominal) |
| Cell Voltage | 3.2V per Cell |
| Continuous Current | 40A |
| Overcharge Detection Voltage | ~3.65V per Cell |
| Overcharge Release Voltage | ~3.4V per Cell |
| Over Discharge Detection Voltage | ~2.5V per Cell |
| Over Discharge Release Voltage | ~3.0V per Cell |
| Balancing Function | Yes |
| Protection | Overcharge, Over Discharge, Overcurrent, Short Circuit |
| Operating Temperature | -20°C to +60°C |
