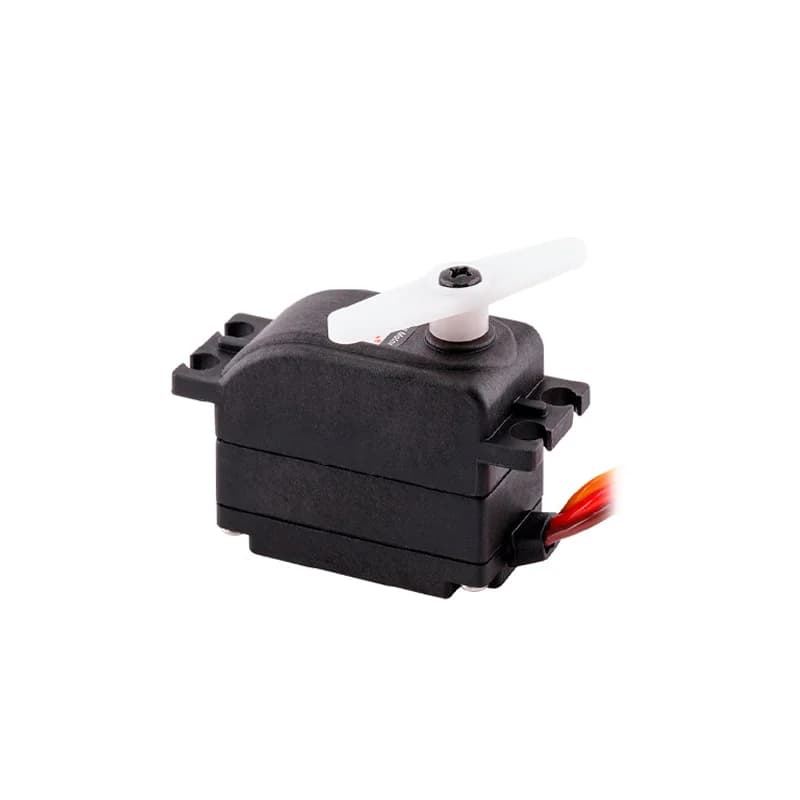

| Item | CM653 Low Profile Servos |
|---|---|
| Rated Voltag | DC7.4V |
| Voltage Range | DC4.8V-8.4V |
| Torque | 10Kgf.cm@4.8V, 12Kgf.cm@6.0V, 15Kgf.cm@7.4V, 18Kgf.cm@8.4V |
| Torque: | 10Kgf.cm@4.8V, 12Kgf.cm@6.0V, 15Kgf.cm@7.4V, 18Kgf.cm@8.4V |
| Speed Rating: | 0.08sec/60°@8.4V, 0.09sec/60°@7.4V, 0.10sec/60°@6.0V, 0.12sec/60°@4.8V |
| Motor Type: | Coreless Motor |
| Operating Voltage (VDC): | 4.8 to 8.4 |
| Frequency (Hz) | 1520us/333Hz |
| Gear Material: | Metal Gear |
| Programmable (Y/N) | Yes |
| Travel Angle (Degree) | ±50 =100 |
| Operating Temperature (°C): | -10 to +65 |
| Soft Start | Programmable |
| Position Sensor | Potentiometer |
| Waterproof Level | IP65 |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 7 × 7 × 4 cm |
