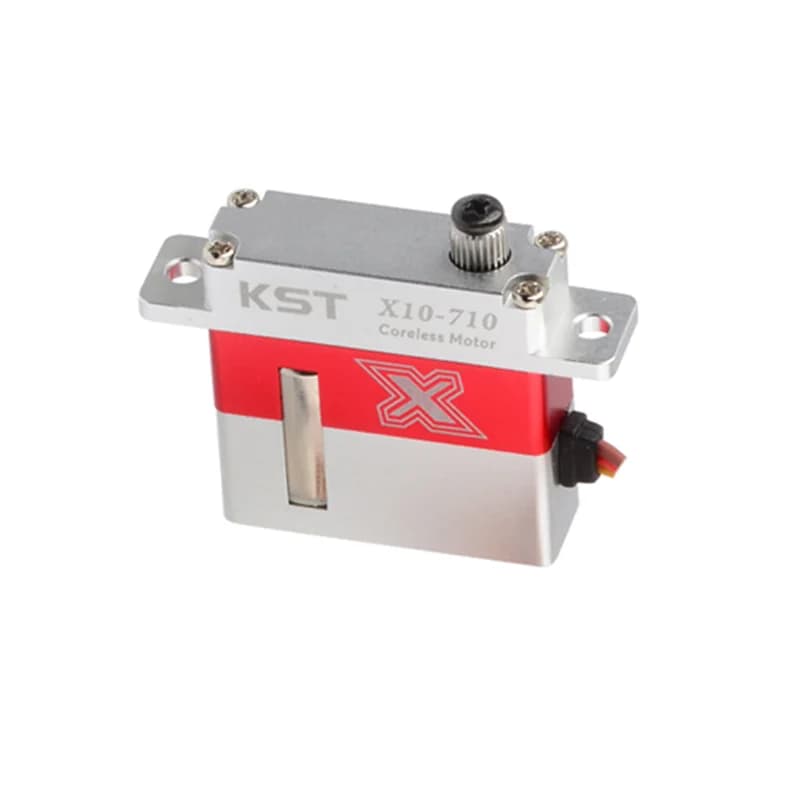

KST Servo X10-710

X10-710 V8 servo is a high and medium voltage version of the KST DS145MG sized servo. It has normal mounting lugs making it ideal for mounting in a fuselage. With only slightly less torque than the larger MKS HV6130H it is excellent value for money. The KST X10-710 V8 has a hardened steel drive train and a coreless motor capable of running all the way from 4.8V to 8.4V (4S NiMH to 2S LiPo) making these servos ideal for electric powered models (most ESCs output 5.5V) as well as most gliders. Features: Hardened Steel Gears Extreme Torque and Excellent Speed CNC Aluminium Case Package Include: 1 x KST Servo X10-710 1 x Pack of Accessories

Specifications

Operation Voltage(rated)	DC7.4V
Operation Voltage Range	DC4.8V-8.4V
Torque	4.5Kg.cm@4.8V / 5.5Kg.cm@6.0V / 6.8Kg.cm@7.4V / 7.50Kg.cm@8.4V
Speed	0.16sec/60°@4.8V / 0.14sec/60°@6.0V / 0.12sec/60°@7.4V / 0.10sec/60°@8.4V
Torque:	4.5Kg.cm@4.8V, 5.5Kg.cm@6.0V, 6.8Kg.cm@7.4V, 7.50Kg.cm@8.4V
Speed Rating:	0.10sec/60°@8.4V, 0.12sec/60°@7.4V, 0.16sec/60°@4.8V
Operating Temperature (°C):	-20 to +65
Operating Voltage (VDC):	7.4
Travel Angle (Degree)	±50
Compatibility:	Programing box/USB link
Shipping Weight	0.04 kg
Shipping Dimensions	12 × 7 × 2 cm
