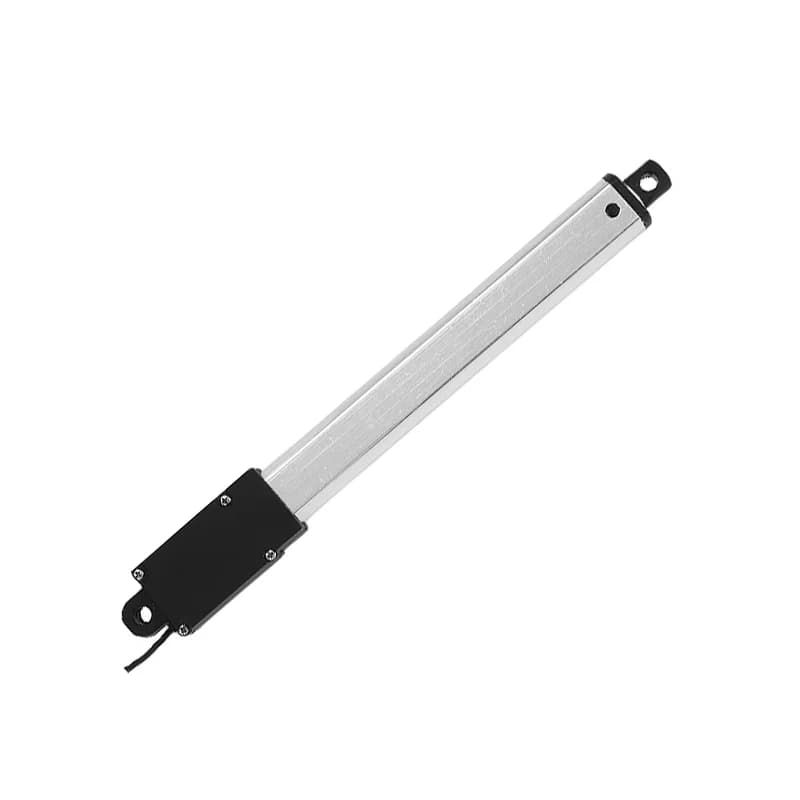

LA-T8-100 Stroke Length 100MM 5MM/S 188N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows

This is a LA-T8-100 Stroke Length 100MM 5MM/S 188N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows. Linear actuators work by moving an object or piece of equipment in a straight line, moving an object extremely accurately and repeatably if required. The primary reason for designing a linear actuator into a system is for the need to move a payload in a linear fashion rather than a rotary one. Features: Max Load:235N Max stroke:150mm Max speed:150mm/s,Hall sensor options Material: Metal Brand New product Lightweight highly precise Low power consumption Packages Includes: 1 x Electric Putter Electric Linear Actuator

Specifications

Name	Electric linear actuator,linear motor,window motor,DC linear actuator
Input	12V DC
Limited switch	Yes
Duty	cycle10%
House Material	plastic
Operating Voltage (VDC):	12
Stroke Length (mm):	100
Force (N):	188
Speed (mm/s):	5
Limit Switch (Y/N)	Yes
Duty cycle	10%
Housing Material	Plastic
Inner tube material	Aluminum alloy
Stroke Length option	10,17.5,21,25,30,50,75,100,150,mm
Noise (dB)	≤ 55 dB
Protection level	IP54
Weight (g):	600
Shipping Weight	0.087 kg
Shipping Dimensions	3 × 3 × 20 cm
