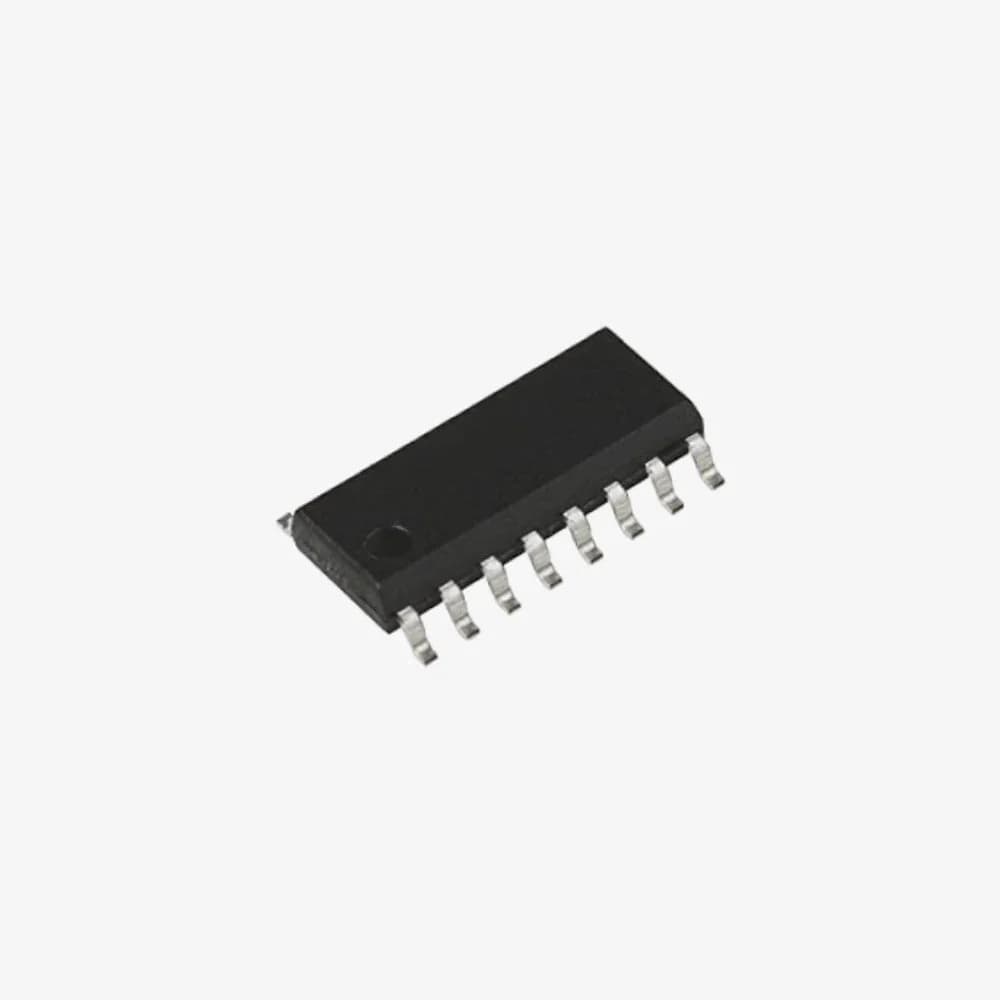

MAX202E RS-232 Interface IC - SOIC-16 SMD Package

The MAX202E is a dual driver/receiver IC designed to meet the RS-232 standard for serial communication. It operates from a single 5 V power supply and utilizes a capacitive voltage generator to provide RS-232 voltage levels. The MAX202E is an enhanced version of the popular MAX232, offering improved ESD protection and reduced power consumption. The device is housed in a compact SOIC-16 SMD package, making it ideal for space-constrained applications.

Pin Configuration:

1. C1+: Positive terminal for the first charge pump capacitor
2. V+: Positive voltage generated by the charge pump
3. C1-: Negative terminal for the first charge pump capacitor
4. C2+: Positive terminal for the second charge pump capacitor
5. C2-: Negative terminal for the second charge pump capacitor
6. V-: Negative voltage generated by the charge pump
7. T2OUT: Transmitter output 2
8. R2IN: Receiver input 2
9. R2OUT: Receiver output 2
10. T2IN: Transmitter input 2
11. T1IN: Transmitter input 1
12. R1OUT: Receiver output 1
13. R1IN: Receiver input 1
14. T1OUT: Transmitter output 1
15. GND: Ground
16. VCC: Positive supply voltage

Features:

• Meets or exceeds RS-232 standards
• Low power consumption with shutdown capability
• ±15 kV ESD protection on all pins
• Operates with four external capacitors
• Compatible with TTL/CMOS logic levels
• Compact SOIC-16 package for space-efficient designs

Applications:

• Serial communication interfaces
• RS-232 data links
• Modems
• Embedded systems
• Microcontroller interfaces

Package Includes:

• 1 x MAX202E RS-232 Interface IC (SOIC-16 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
