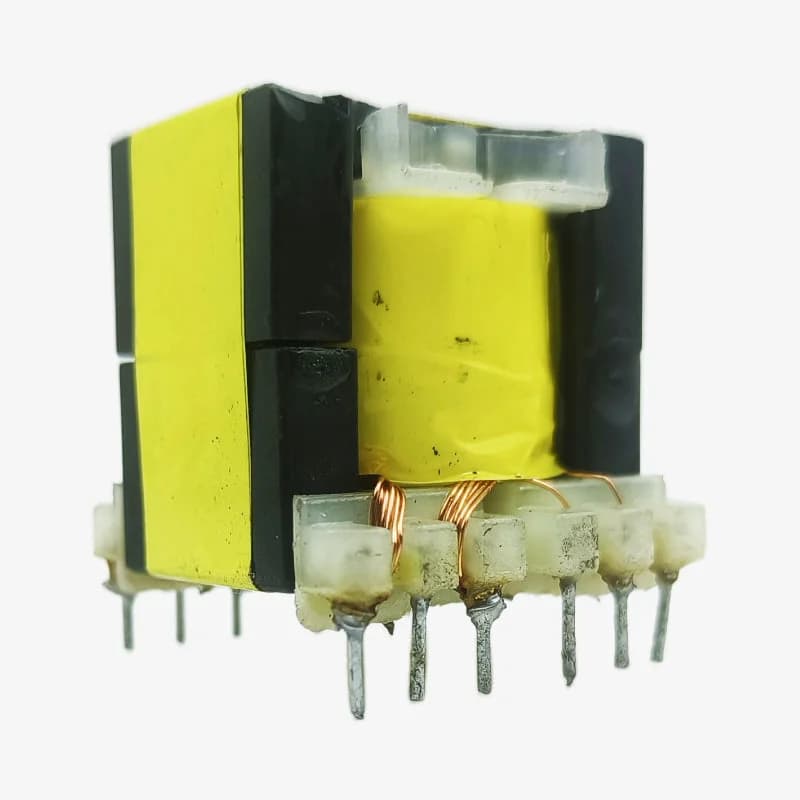

The PQ3230 150W High-Frequency SMPS Transformer is a robust and efficient power transformer designed for switch-mode power supply applications requiring a 21V high-current output. Built on a PQ3230 MnZn ferrite core, this transformer is optimized for high-frequency operation and is fully compatible with OB2269CP-based SMPS designs. With a power handling capacity of up to 150 watts and multiple auxiliary/bias windings, this transformer is ideal for use in power adapters, battery chargers, LED drivers, audio amplifiers, and industrial SMPS circuits. High-grade copper windings ensure low losses, stable performance, and reliable operation across a wide temperature and frequency range.
1 × PQ3230 150W High-Frequency SMPS Transformer - 21V Output (OB2269CP Compatible)
| Transformer Type | High-Frequency SMPS Transformer |
|---|---|
| Model Number | PQ3230 |
| Core Material | MnZn (Manganese-Zinc) Ferrite |
| Phase | Single Phase |
| Power Rating | Up to 150W |
| Output Voltage | 21V (DC after rectification) |
| Maximum Secondary Current | Up to 6A |
| Primary Winding | ~400mH, (18 + 18) Turns, 6 × 0.3mm Copper Wire |
| Primary Bias Winding | 7 Turns, 1 × 0.3mm Copper Wire |
| Secondary Winding | 8 Turns, 5 × 0.5mm Copper Wire |
| Secondary Bias Winding | 7 Turns, 2 × 0.3mm Copper Wire |
| Working Frequency | 20kHz – 500kHz |
| Winding Material | High-Grade Copper |
| Number of Pins | 8 |
| Mounting Style | Through-Hole |
| Operating Temperature | –15°C to +105°C |
| Dimensions (L × B × H) | 35mm × 32mm × 31mm |
| Weight | 78.5g |
