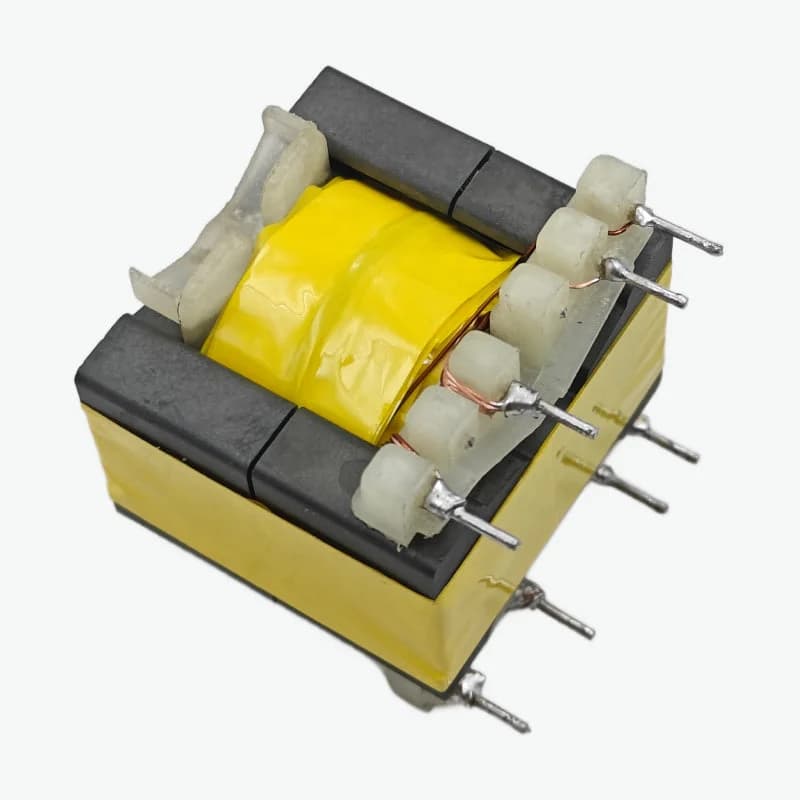

The PQ3230 SMPS High Frequency 150W Transformer is designed for reliable and efficient power conversion in switch-mode power supplies. Constructed with a high-quality MnZn ferrite core and precision copper windings, it delivers high performance across a wide frequency range while maintaining excellent thermal stability. With auxiliary bias windings, robust 8-pin through-hole mounting, and a compact yet durable design, this transformer is well-suited for high-power isolated converters, industrial SMPS systems, and other demanding applications.
Features of PQ3230 SMPS High Frequency 150W Transformer:
| Model Number | PQ3230 |
|---|---|
| Core Material | MnZn (Manganese-Zinc) Ferrite |
| Phase | Single |
| Power Rating | 150 Watts |
| Max Secondary Current Draw | 6A |
| Primary Winding | ~400mH, (18+18) Turns, 6 × 0.3mm wire |
| Primary Bias Winding | 5 Turns, 1 × 0.3mm wire |
| Secondary Winding | 8 Turns, 5 × 0.5mm wire |
| Secondary Bias Winding | 5 Turns, 2 × 0.3mm wire |
| Working Frequency | 20kHz ~ 500kHz |
| Winding Material | High-Grade Copper |
| Temperature Range | -15°C to +105°C |
| No. of Poles | 8 Pin |
| Mounting Style | Through Hole |
| Dimensions (L×B×H) | 35mm × 32mm × 31mm |
| Weight | 78.5g |
| Package Includes | 1 × PQ3230 SMPS High Frequency 150W Transformer with Auxiliary Windings |
