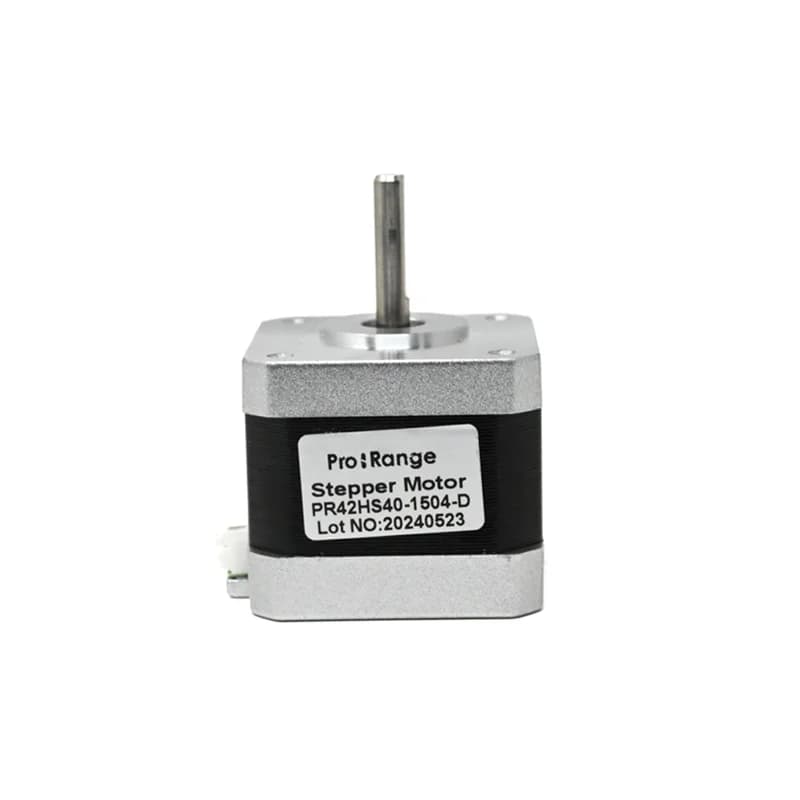

Pro-Range NEMA17 PR42HS40-1504 4.2 kg-cm Stepper Motor -D Type Shaft

Model: 42HS40-1504 NEMA17 / 17HS4401 Stable structure, no jamming Shaft Type: D Type Shaft Stable speed and low noise Step Angle(degrees): 1.8°±0.09° Phase Inductance: 3.7*(1±20%)mH/Phase Positioning Torque: 15 mN.m REF. Maximum starting rate:≥1500 PPS Insulation resistance:≥100 MΩ (DC 500V) Cable length: 1meter

Specifications

Model	42HS40-1504 NEMA17 / 17HS4401
Shaft Type	D Type Shaft
Step Angle(degrees)	1.8°±0.09°
Phase Inductance	3.7*(1±20%)mH/Phase
Positioning Torque	15 mN.m REF.
Maximum starting rate	≥1500 PPS
Insulation resistance	≥100 MΩ (DC 500V)
Cable length	1meter
