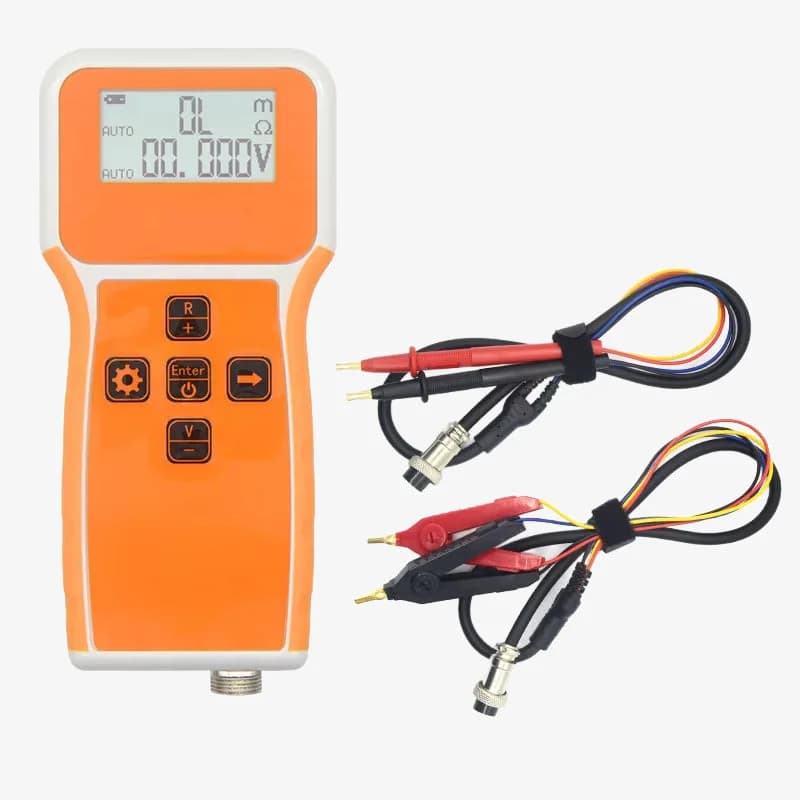

RC3563 IR Internal Resistance Detector High Precision Voltage Tester for Lithium Battery

The RC3563 Battery Internal Resistance Tester is a state-of-the-art 4-wire battery tester designed for accurate and reliable measurements. Ideal for testing a wide range of batteries including LiPo, LiFePO4, NiMH, and NiCd, this Battery IR tester simultaneously measures AC resistance and DC voltage with high precision. Its intelligent control system, clear LCD display, and built-in battery make it perfect for on-the-go testing in manufacturing, maintenance, and research environments.

RC3563 Battery IR Tester Features:

• True 4-wire testing for minimized contact resistance errors
• Dual measurement capability: measures both AC resistance and DC voltage simultaneously.
• High accuracy: 0.5% measurement precision for both resistance and voltage
• Intelligent control with both automatic and manual range options
• Versatile usage for batteries, capacitors, and high-precision resistors

\RC3563 Battery IR Tester Specifications:

Package Includes:

1 x RC3563 IR Tester with Probe, Clip & Fixture

Specifications
