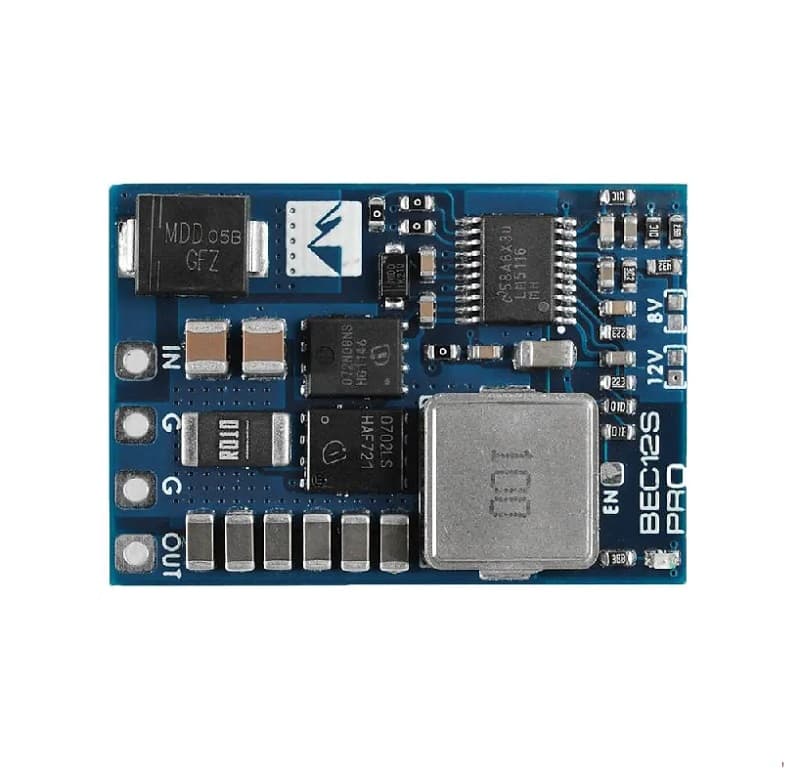

RTS - MATEKSYS 12S Pro BEC - 9-55V To 5V/8V/12V - 5A

Output ripple: 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A) Dropout voltage: 2V (Input>=14V is required for stable 12V output) Operating Input Range: 9V to 55V with TVS protection Output voltage options: 5.2V, 8V or 12V. Default 5.2V Buck regulator efficiency: 88% to 96% Standby current: 5~10mA Size: 35 x 24 x 5.5mm Pins distance: 3.81mm Weight: 5g

Specifications

Output ripple	30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
Dropout voltage	2V (Input>=14V is required for stable 12V output)
Operating Input Range	9V to 55V with TVS protection
Output voltage options	5.2V, 8V or 12V. Default 5.2V
Buck regulator efficiency	88% to 96%
Standby current	5~10mA
Size	35 x 24 x 5.5mm
Pins distance	3.81mm
Weight	5g
