The S9015 PNP Transistor - SOT-23 SMD Package is a general-purpose transistor designed for low-noise amplification and signal switching. It offers high gain, stable operation, and reliable performance in compact circuit designs. Ideal for audio frequency amplifiers, low-power switching, and complementary use with the S9014 NPN transistor.
CLICK HERE FOR DATASHEET

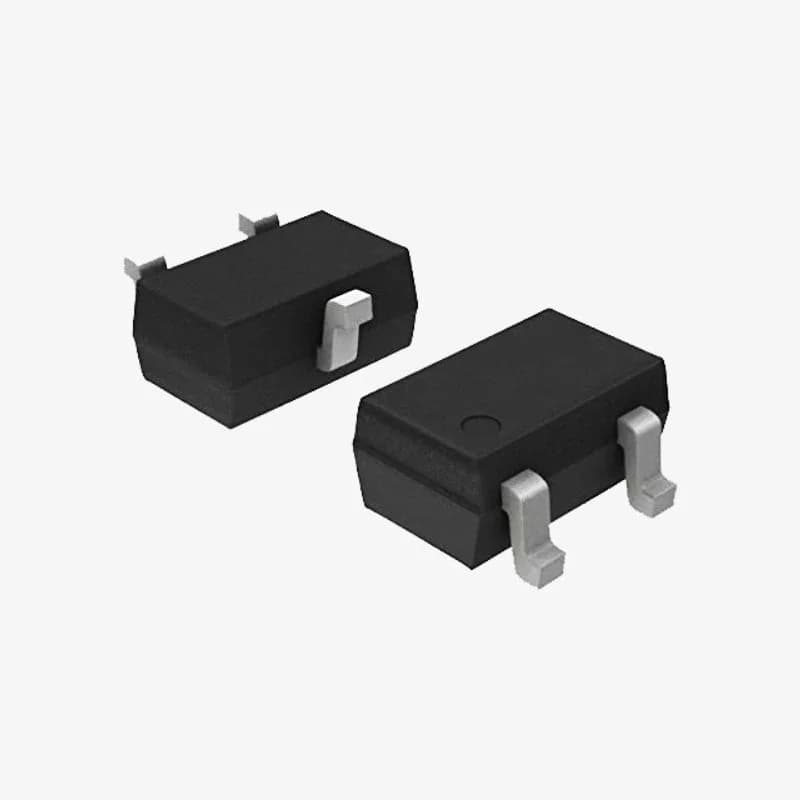

10 × S9015 PNP Transistor - SOT-23 SMD Package
| Collector-Base Voltage (VCBO) | -50V |
|---|---|
| Collector-Emitter Voltage (VCEO) | -45V |
| Emitter-Base Voltage (VEBO) | -5V |
| Collector Current (IC) | -100mA |
| Collector Power Dissipation (PC) | 200mW |
| Thermal Resistance Junction-to-Ambient (RθJA) | 625°C/W |
| Junction Temperature (TJ) | 150°C |
| Storage Temperature (TSTG) | -55°C to +150°C |
| Collector-Base Breakdown Voltage (V(BR)CBO) | -50V |
| Collector-Emitter Breakdown Voltage (V(BR)CEO) | -45V |
| Emitter-Base Breakdown Voltage (V(BR)EBO) | -5V |
| Collector Cutoff Current (ICBO) | -0.1µA |
| Emitter Cutoff Current (IEBO) | -0.1µA |
| DC Current Gain (hFE) | 200 to 1000 |
| Collector-Emitter Saturation Voltage (VCE(sat)) | -0.3V |
| Base-Emitter Saturation Voltage (VBE(sat)) | -1V |
| Transition Frequency (fT) | 150MHz |
