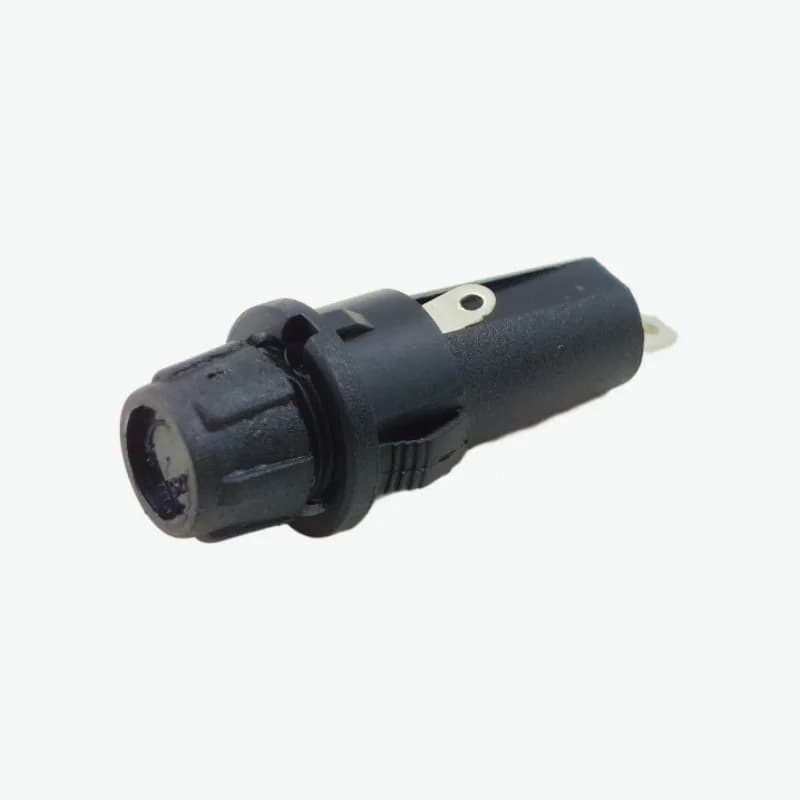

The Snap-In Panel Mount Fuse Holder offers a secure and compact solution for mounting 5×20mm fuse links in electronic and electrical devices. Designed for quick snap-in panel installation, it eliminates the need for screws while maintaining a firm hold. The durable Polyamide Glass-Filled (G.F.) body ensures excellent heat resistance and insulation, while the brass tin-plated contacts provide consistent electrical conductivity and long-lasting performance.
1 × Snap-In Panel Mount Fuse Holder – 5×20mm 6.3A 250V AC
| Type | Snap-In Panel Mount Fuse Holder |
|---|---|
| Mounting Style | Panel, Snap-In |
| Material | Polyamide G.F. (Glass-Filled) |
| Fuse Size | 5×20mm |
| Rated Current/Voltage | 6.3A / 250V AC |
| Terminals | Solder Type |
| Current Carrying Parts | Brass, Tin-Plated |
| Cap Design | Screw-In |
| Panel Thickness (Max.) | 3mm |
| Insulation Resistance | ≥1000 MΩ |
| Contact Resistance (Initial) | ≤10 mΩ |
| High Voltage Breakdown | 2KV AC for 1 minute |
| Permissible Temperature (With/Without Load) | -20°C to +85°C |
| Approximate Weight | 4.1g |
