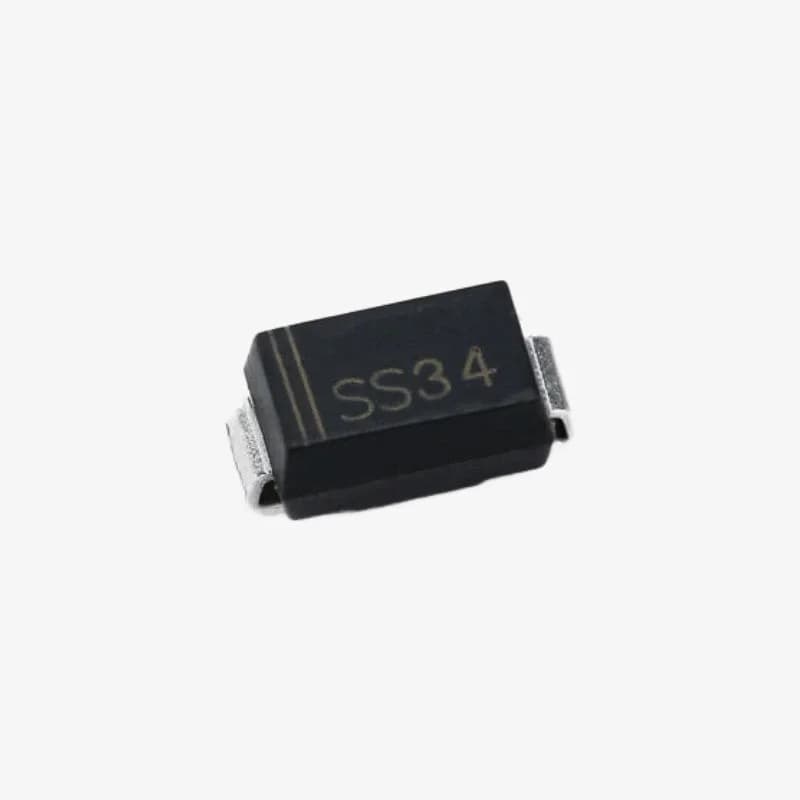

The SS34 is a high-efficiency Schottky barrier rectifier diode designed for low-voltage, high-frequency applications. With a maximum forward current of 3A and reverse voltage of 40V, it offers low forward voltage drop and fast switching capabilities, making it ideal for power supplies, battery chargers, DC-DC converters, and reverse polarity protection circuits.
Housed in a DO-214AB (SMC) big SMD package, this diode provides excellent thermal performance and compact PCB mounting for space-constrained designs.
Features of SS34 Schottky Diode:
Package Includes:
1 × SS34 DO-214AB (SMC) Big SMD 3A 40V Schottky Diode
| Model | SS34 |
|---|---|
| Maximum Reverse Voltage (VR) | 40V |
| Maximum Forward Current (IF) | 3A |
| Peak Surge Current (IFSM) | 80A |
| Forward Voltage Drop (VF) | 0.5V ~ 0.55V (typical @3A) |
| Reverse Leakage Current (IR) | ≤0.5mA @40V |
| Package Type | DO-214AB (SMC) – Big SMD |
| Operating Temperature | -55°C to +150°C |
