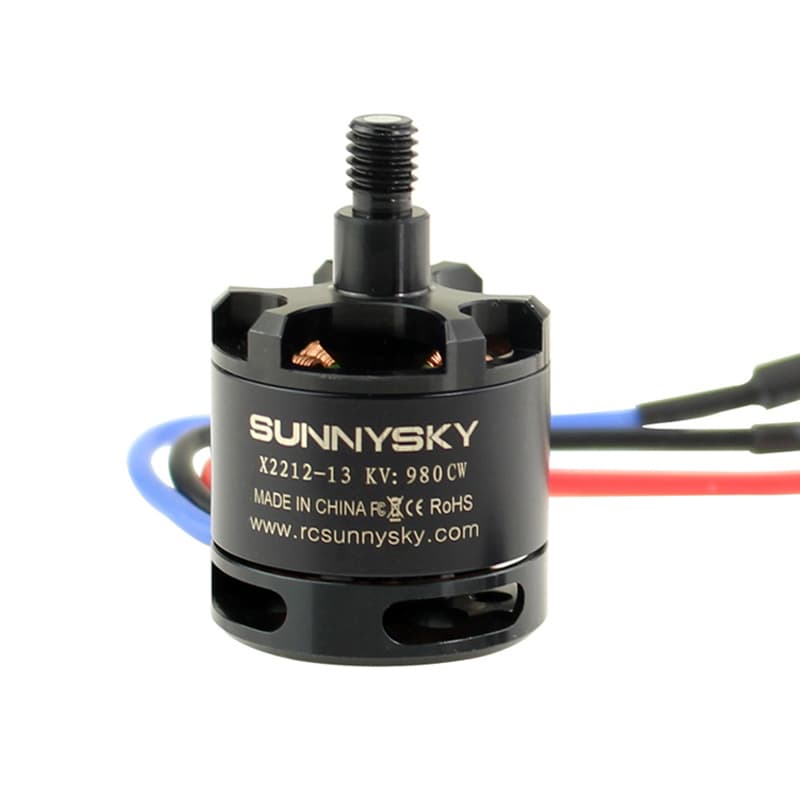

Sunny Sky X2212 KV980 Brushless Motors - CCW

Stator Diameter: 22mm Stator Thickness: 12mm No.of Stator Slots: 12 No.of Rotor Poles: 14 Motor Kv: 980 No-load current: 0.7A/10V Recommended Prop(inch): 9450

Specifications

Stator Diameter	22mm
Stator Thickness	12mm
No.of Stator Slots	12
No.of Rotor Poles	14
Motor Kv	980
No-load current	0.7A/10V
Recommended Prop(inch)	9450
Motor KV (RPM/V):	980
Motor Type:	Brushless Motor
No. of Stator Arms	12
No. of Stator Poles	14
No-Load Current (A/10V)	0.7A/10V
Motor Resistance	100mΩ
Continuous Current (A):	25A/30S
Max. Power (W)	412W
Motor Weight (g)	56
Outer Diameter (mm):	27.5
Shaft Diameter (mm):	3.175mm
Motor Body Length (mm):	42
Required ESC (A)	20
GTIN	787811284255
Shipping Weight	0.079 kg
Shipping Dimensions	9 × 6 × 5 cm
