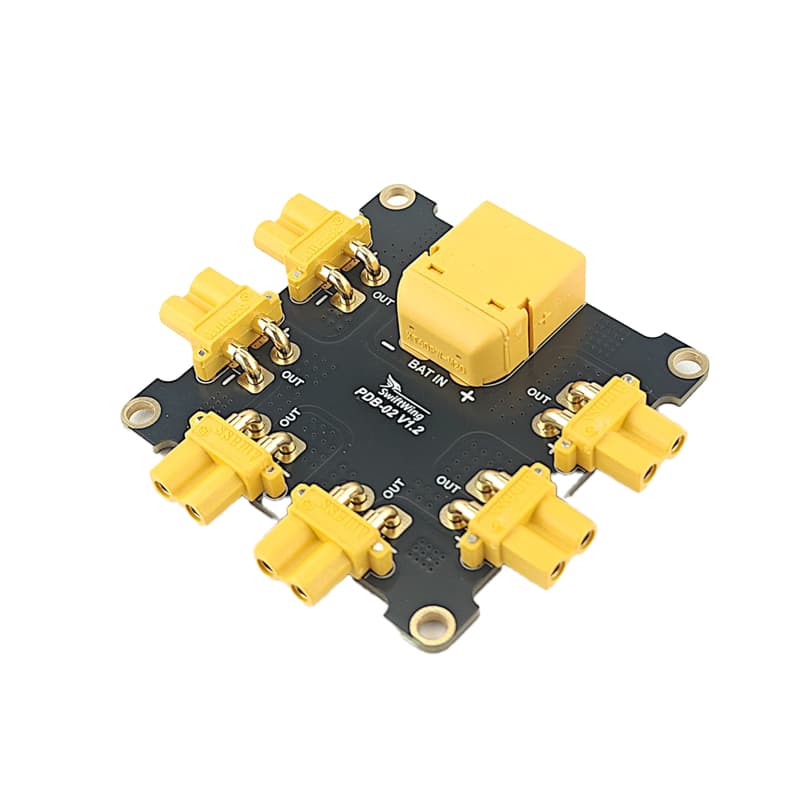

SwiftWing PDB-02-XT60-6XT30 3S–6S Power Distribution Board with XT60 & 6 XT30 Connectors

Battery Input Voltage: 3S–6S LiPo (11.1–25.2 V) Battery Connector: XT60 (factory-installed, ~60 A rating) ESC Outputs: 6 × XT30 (factory-installed, ~30 A each) Board Layers: 4-layer copper with ENIG finish Board Size: 50 mm × 50 mm

Specifications

Battery Input Voltage	3S–6S LiPo (11.1–25.2 V)
Battery Connector	XT60 (factory-installed, ~60 A rating)
ESC Outputs	6 × XT30 (factory-installed, ~30 A each)
Board Layers	4-layer copper with ENIG finish
Board Size	50 mm × 50 mm
Battery Input	Recommended : 3S–6S LiPo (11.1–25.2 V)
Battery Connector Type	XT60 (factory-installed, ~60 A rating)
ESC Output	6 × XT30 (factory-installed, ~30 A each)
Input Voltage	26 V DC Max.
Continuous Current (A):	~60 A Max. (limited by XT60 connector rating), ~30 Max. (Per XT30 Output)
Mounting holes	4 × M3 (45 mm spacing)
PCB layers	4-layer, 2 oz copper
Board Size (mm)	50 × 50 × 1.6 ±0.15 mm
Weight (g):	21
Shipping Weight	0.024 kg
Shipping Dimensions	7 × 7 × 3 cm
