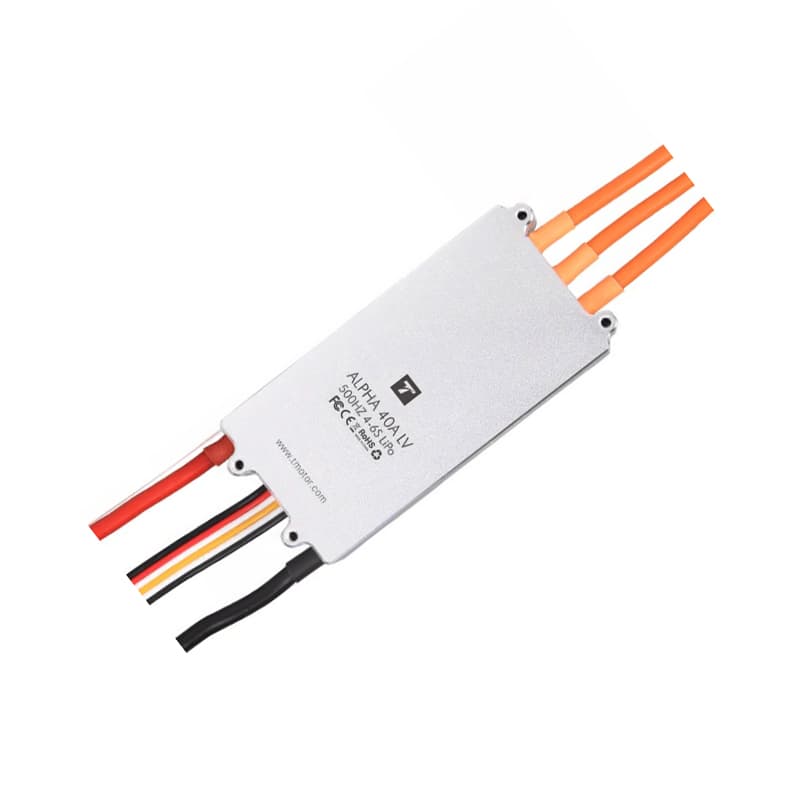

| Model | ALPHA 40A |
|---|---|
| Brand | T-motor |
| Voltage | 4-6S ( 18-25.2V) |
| Current | 40A |
| Throttle range | 1100-1940μs |
| Item Type: | Brushless ESC |
| Model Name: | ALPHA 40A |
| Operating Voltage | 4-6S ( 18-25.2V) |
| Continuous Current (A): | 40 |
| Instantaneous current | （10s):60A |
| Programming Line | PVC wiring-30 CORE-3-300MM (Black Red White/JR 3P head) |
| Standby power consumption | ≤50mA |
| Throttle refresh frequency | 500Hz |
| Throttle Response Speed | 120ms |
| Recommend Motor | U3 700KV,U5 400KV,MN5212 340KV,MN4006 380KV,MN501S 360KV,MN501S 300KV,MN7005 230KV |
| Signal Line | PVC wiring-30 CORE-2-300MM (blank BLACK/JR 3P head) |
| Length (mm): | 6 |
| Width(mm) | 3 |
| Color | Silver |
| Shipping Weight | 0.178 kg |
| Shipping Dimensions | 16 × 7 × 6 cm |
