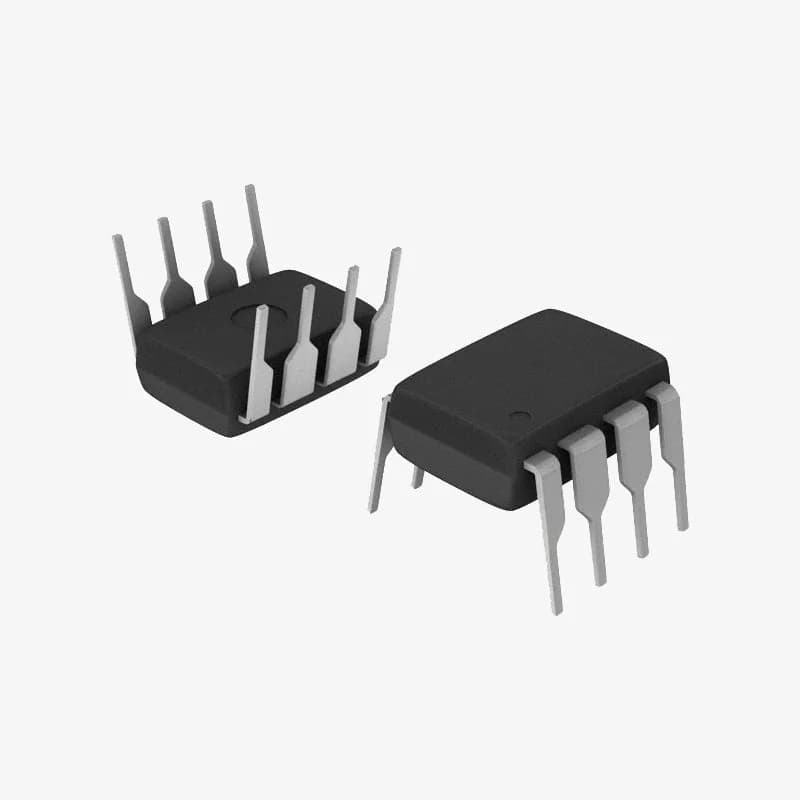

TLP250(F) 2.5KV 1CH Optoisolated MOSFET Gate Driver IC - DIP-8 Package is a high-speed optically isolated gate driver designed for driving power MOSFETs and IGBTs in switching power supplies, motor drives, inverters, UPS systems, and industrial automation. Featuring 2.5kVrms isolation voltage, high peak output current, and fast switching performance, it provides reliable electrical isolation and efficient gate drive for high-voltage power applications.
| Pin | Name | Description |
|---|---|---|
| 1 | ANODE | LED Anode Input |
| 2 | CATHODE | LED Cathode Input |
| 3 | NC | No Connection |
| 4 | GND | Ground |
| 5 | VO | Gate Driver Output |
| 6 | VCC | Supply Voltage |
| 7 | VEE | Output Ground |
| 8 | NC | No Connection |
AN7112 Audio Power Amplifier IC
TDA2822M Amplifier IC
HT12D (RF Decoder) IC
1 x TLP250(F) 2.5KV 1CH Optoisolated MOSFET Gate Driver IC - DIP-8 Package
| Product Type | Optoisolated MOSFET Gate Driver IC |
|---|---|
| Part Number | TLP250(F) |
| Package | DIP-8 |
| Number of Channels | 1 |
| Isolation Voltage | 2.5kVrms |
| Supply Voltage | 10V ~ 35V |
| Peak Output Current | ±1.5A (Typ.) |
| Input Logic | TTL / CMOS Compatible |
| Propagation Delay | 0.5µs (Typ.) |
| Rise/Fall Time | 0.15µs (Typ.) |
| Operating Temperature | -20°C to +85°C |
| RoHS Compliance | Yes |
