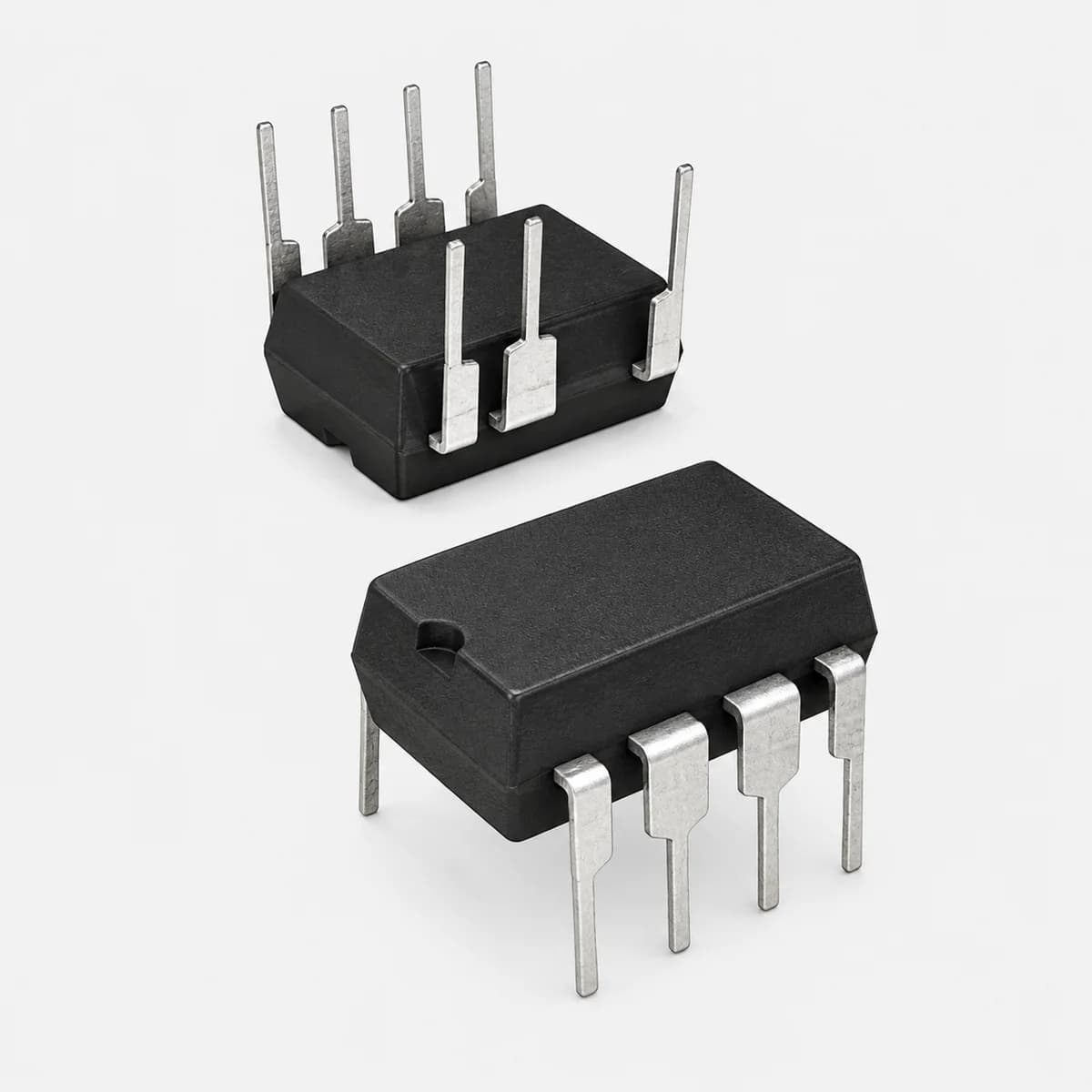

TNY266PN Power Integrations Off-Line Switcher IC - DIP-8 Package is a highly integrated off-line switcher IC from the TinySwitch-II family by Power Integrations. It combines a high-voltage power MOSFET, PWM controller, startup circuitry, current limiting, and thermal protection into a single compact device, significantly reducing component count in AC-DC power supplies. The TNY266PN is ideal for chargers, standby power supplies, LED drivers, household appliances, industrial controls, and other low-power SMPS applications.
| Pin | Function |
|---|---|
| 1 | EN/UV (Enable/Undervoltage) |
| 2 | BP/M (Bypass/Multi-Function) |
| 3 | SOURCE |
| 4 | SOURCE |
| 5 | SOURCE |
| 6 | DRAIN |
| 7 | DRAIN |
| 8 | DRAIN |
AN7112 Audio Power Amplifier IC
TDA2822M Amplifier IC
HT12D (RF Decoder) IC
1 x TNY266PN Power Integrations Off-Line Switcher IC - DIP-8 Package
| Product Type | Off-Line Switcher IC |
|---|---|
| Model | TNY266PN |
| Series | TinySwitch-II |
| Package | DIP-8 |
| Input Voltage | 85V–265V AC (Universal Input) |
| Output Power | Up to 19W (Open Frame), Up to 12W (Enclosed Adapter) |
| Switching Frequency | 132kHz (Typical) |
| Integrated MOSFET | 700V Power MOSFET |
| Drain Breakdown Voltage | 700V |
| Control Method | PWM Control |
| Protection Features | Auto-Restart, Thermal Shutdown, Current Limiting, Short Circuit Protection |
| Operating Temperature | -40°C to +150°C (Junction) |
| Mounting Type | Through Hole |
| Applications | AC-DC Power Supplies, Battery Chargers, Adapters, LED Drivers, Smart Appliances, Industrial Electronics |
| RoHS Compliance | Yes |
