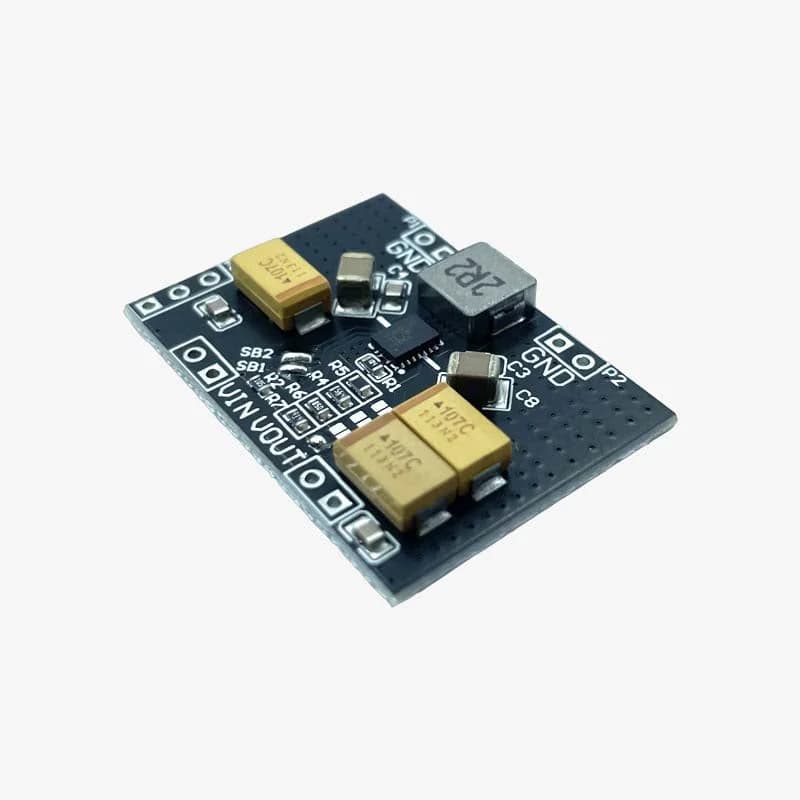

TPS63020 5V Automatic Buck-Boost Power Supply Module

TPS63020 is a high-efficiency small buck-boost power supply module. The input voltage ranges from 1.8V to 5.5V, the output current can be as high as 3A, and the efficiency is as high as 96%. It can automatically switch between buck and boost modes. The quiescent current is less than 50uA and the fixed operating frequency is 2.4mhz, can be used for all two-cell and three-cell alkaline batteries, single-cell lithium battery powered devices, ultra-small mobile PCs and MIDs, digital media players, DSCs and cameras.

Features:

• The TPS63020 is a high-efficiency, the compact buck-boost power supply module
• Input voltage range of 1.8V to 5.5V, output current up to 3A, and efficiency up to 96%
• It can automatically switch between buck and boost modes
• The quiescent current is less than 50uA and the fixed operating frequency is 2.4Mhz
• It can be used in all two-cell and three-cell alkaline batteries, single-cell lithium battery-powered devices, ultra-compact and mid-size laptops, digital media players, DSCs, and cameras
• Point-Saving Mode (PS): This feature is customizable with 1 for disabled and 0 for enabled. The module is disabled by default. Activate it by disconnecting SB1 and applying the appropriate input level.
• Enable Input (EN): The module is enabled by default (1), and can be disabled (0) as per your requirements. Disconnect SB2 and input the desired level to enable or disable this feature.
• Output Status Indication (PG): Provides clear output status indication. A reading of 0 signifies a fault condition, while 1 indicates normal operation.

Pinout:

Package Includes:

1 x 5V TPS63020 Automatic Buck-Boost Step Up Down Power Supply Module
