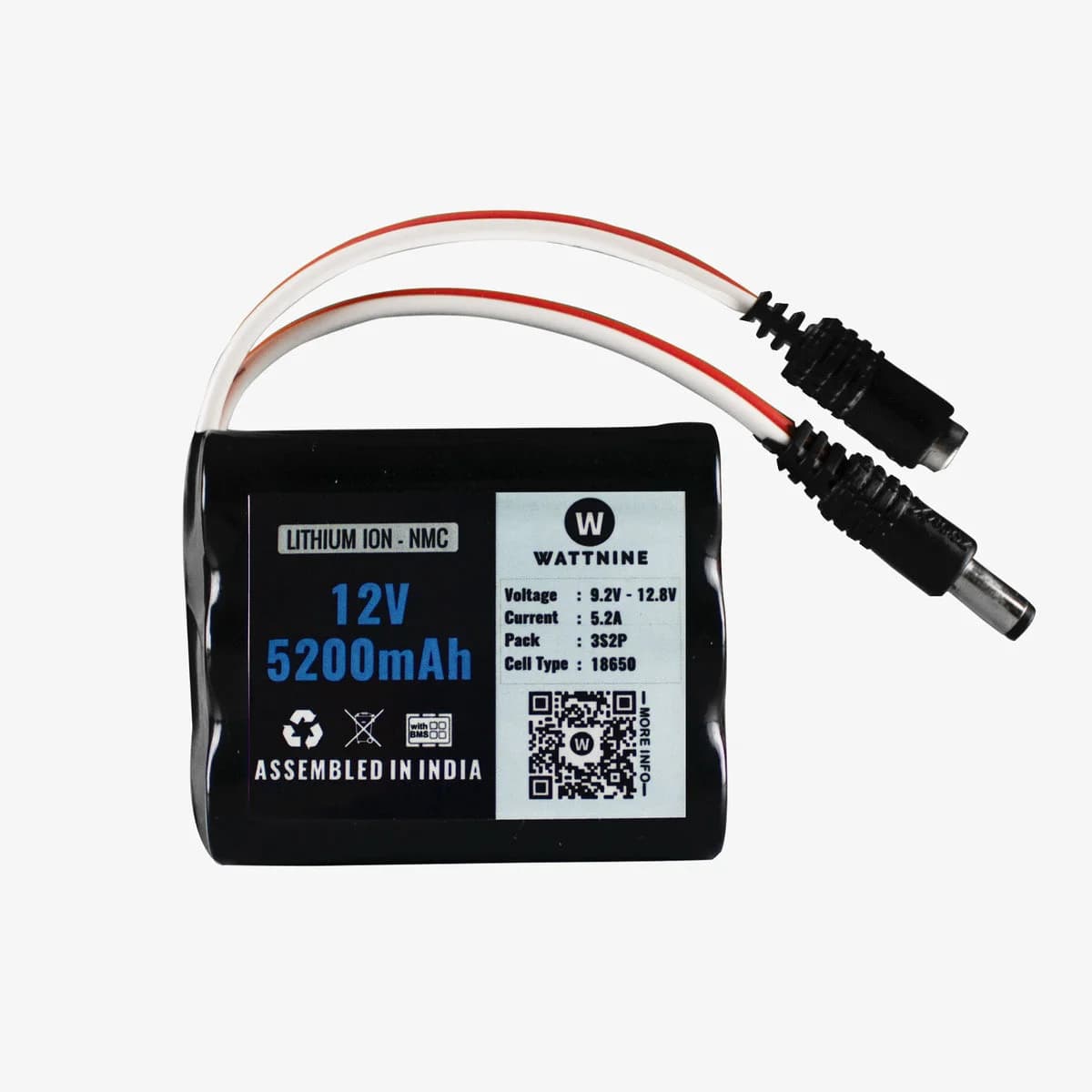

WATTNINE® 12V 5200mAh Lithium ion Battery Pack with 3 year Warranty

This 11.1V 5200mAh Li-ion Rechargeable Battery Pack has a nominal voltage of 12.6 volts and is a 3s2p battery pack. This battery pack contains 6 cells connected in series and parallel, giving it a capacity of 5200mAh. The battery pack has a built-in BMS that protects the battery from overcharging, over-discharging and short circuit.

Recommended Charger - Charging Time

1. 12.6v 1.5A Lithium Battery Charger - 3Hrs 30Min
2. 12.6v 2A Li-ion Battery Charger - 2Hrs 30Min
3. 12.6v 3A Li-ion Battery charger - 1Hr 30min.

Datasheet / Specification

Specification

• Charging Voltage- 12.6V
• Charging Current- 2.6A
• Nominal Pack Voltage- 11.1V
• Nominal Discharge Current- 5.2A

Certifications & Warranty:

• BIS Approved: Yes
• BIS Registration Number: R-84005630
• Warranty: 3 Years

Protection (Included BMS)

• Short Circuit Protection
• Overvoltage cut-off- 12.8
• Undervoltage cut-off- 9.2V

Warranty Terms:

This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.

Applications:

• Small scale UPS Battery
• Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
• Wifi Modem or Router Battery for backup
• 12V Remote CCTV Camera
• PSP
• Industrial Machines
• Emergency Lights
• Robotics and RC cars
• Music Players and Audio Systems
