| Rated Torque (N-m) | 3 |
|---|---|
| Encoder Resolution(Bit) | 14 |
| Input Voltage (V) | 10-24 DC |
| Maximum current(A) | 20 |
| Communication Mode | CAN FD |

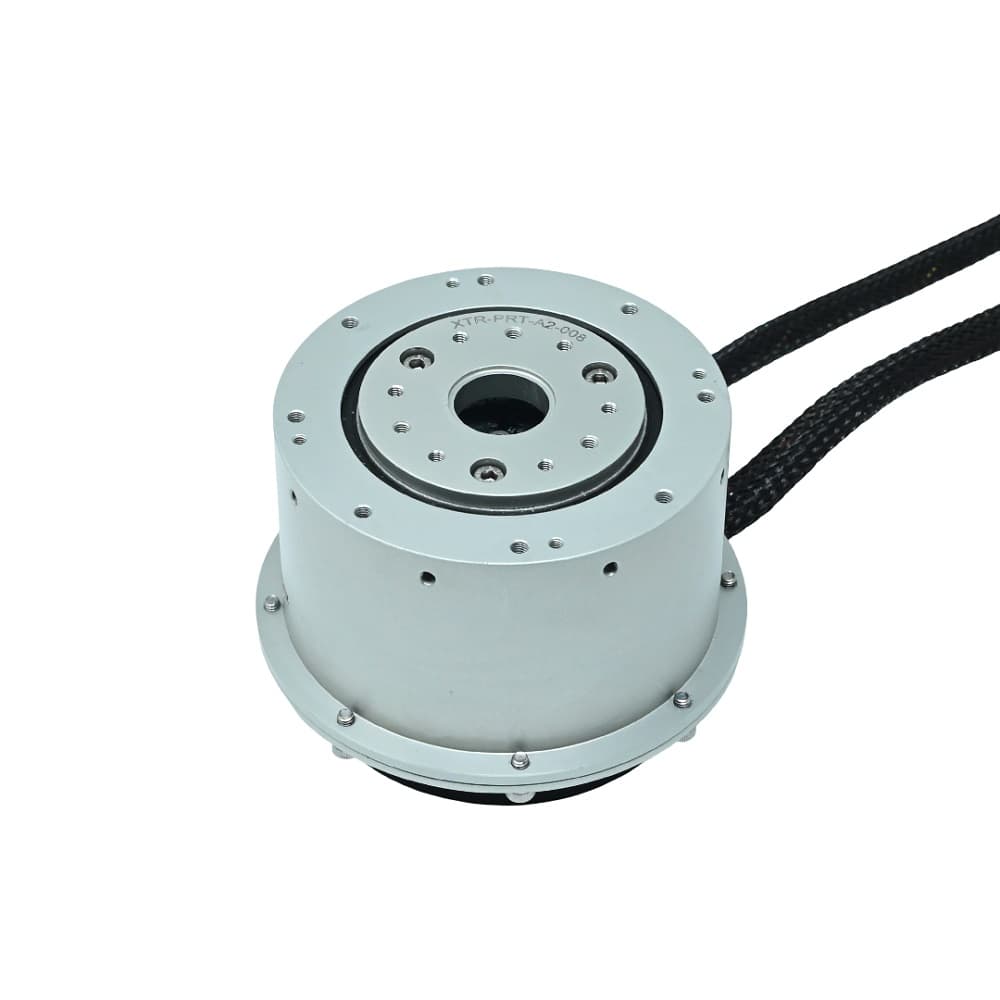

| Item Type: | Robotic Joint |
| Rated Torque (N-m): | 3 |
| Encoder Resolution(Bit): | 14 |
| Input Voltage (V): | 10-24 DC |
| Maximum current(A) | 20 |
| Control Mode | FOC (Field-Oriented Control) |
| Outer Diameter (mm): | 77 |
| Rotational Speed | 360 RPM (@24VDC) |
| Communication Mode | CAN FD |
| Weight (g): | 550 |
| Width (mm): | 50 |
| Shipping Weight | 0.67 kg |
| Shipping Dimensions | 11 × 9 × 7 cm |
