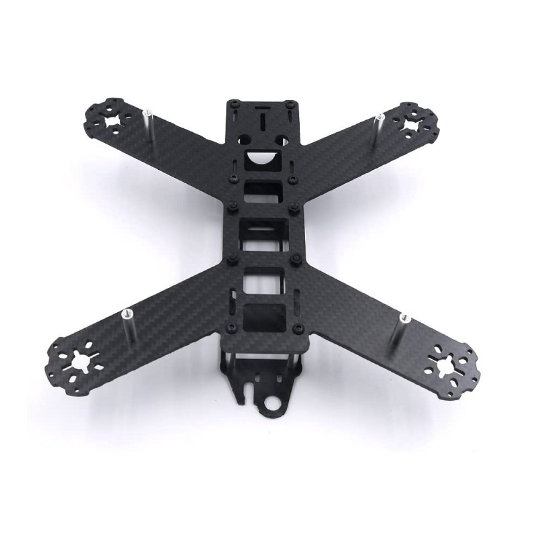

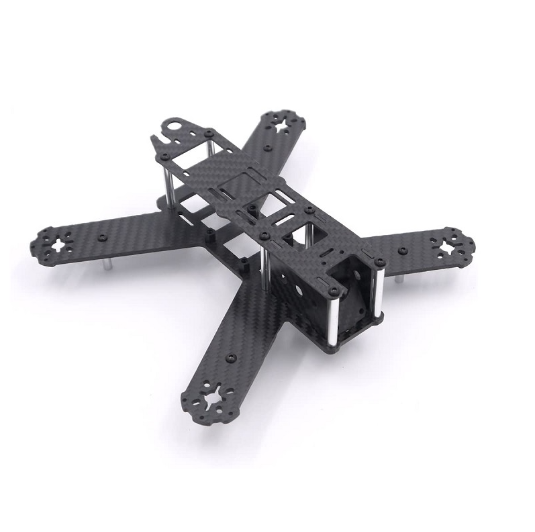

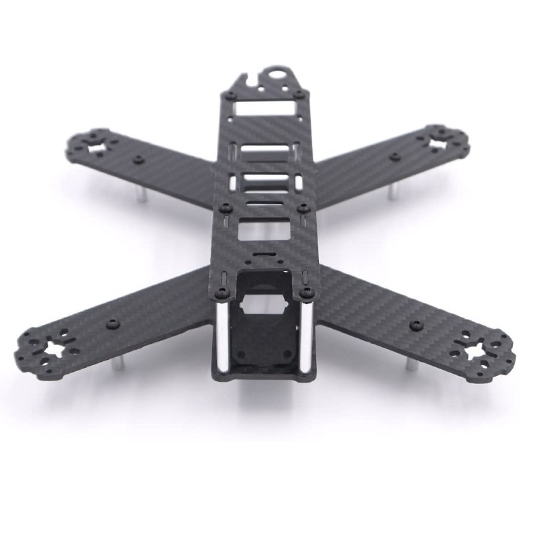

QAV210 Quadcopter Strong Carbon Fiber 3mm Arm FPV Racing Frame(210mm) Kit

Description

 QAV210 FPV Racing Frame, now available under NDFA60 by LOFTY AGROTECH. This mini-size quadcopter frame is expertly designed to address common challenges in FPV racing and aerial video recording, offering an optimal balance of strength, weight, and aerodynamic efficiency.

Constructed from high-strength carbon fiber, the QAV210 is recognized for its excellent durability and toughness, making it a popular choice for competitive racing and freestyle flying. The 3mm thick carbon arms dramatically reduce the chances of breakage, even under harsh landings. The inclusion of dampers at the arm ends provides an extra layer of motor protection during crashes, making it more crash-resilient.

Its aerodynamic mini-sized design helps in maintaining lower throttle during hovering and improves flight performance by reducing drag. Despite its compact form, the frame provides a generous surface area on the main body for mounting accessories like FPV cameras, HD cams, and batteries. The elongated top and bottom plates further simplify installation, offering more space and flexibility in configuring your electronics.

Whether you’re a beginner or a seasoned pilot, the QAV210’s robustness, ease of setup, and exceptional flight stability make it a reliable frame for building your next racing drone.

To learn more or buy, click here.

 QAV210 FPV Racing Frame Specifications:

•  QAV210 FPV Racing Frame Material: Carbon Fiber

•  QAV210 FPV Racing Frame Wheelbase: 210mm

•  QAV210 FPV Racing Frame Thickness: 3mm

•  QAV210 FPV Racing Frame Weight: Approx. 100g

•  QAV210 FPV Racing Frame Shipping Weight: 0.08 kg

•  QAV210 FPV Racing Frame Shipping Dimensions: 21 × 21 × 2 cm

 QAV210 FPV Racing Frame Package Includes:

• 1 x Unibody Frame with Motor Arms

• 1 x Camera Lens Holder

• 1 x Top Cover Plate

• 2 x Set of Hex Screws

• 10 x Aluminium Standoffs

• 2 x Side Plates for Camera Mount

 QAV210 FPV Racing Frame Recommended (Not Included):

•  QAV210 FPV Racing Frame Propeller: 5″ Orange Propellers (CW & CCW)

•  QAV210 FPV Racing Frame Battery: 3S Orange LiPo (1800–2200mAh)

•  QAV210 FPV Racing Frame ESC: 12–20A

•  QAV210 FPV Racing Frame Motor: 1800–2400KV (Brushless DC Motor)

•  QAV210 FPV Racing FramePower Distribution Board (PDB)

  Table of Contents

  Toggle

  🛩️ QAV210 5-inch Carbon Fiber FPV Racing Drone Frame – Durable, Lightweight, and Built for Speed

• T

• The QAV210 5-inch Carbon Fiber FPV Racing Drone Frame is a premium X-style quadcopter frame engineered for high-performance drone racing and freestyle flying. Built with ultra-durable 3mm carbon fiber arms, this QAV210 FPV racing frame offers superior strength, agility, and reliability—making it the go-to choice for FPV pilots looking to push limits in both competition and practice.

  With a 210mm wheelbase, this frame is perfectly suited for 5-inch propellers, giving you the ideal balance between responsiveness and stability in fast-paced flight scenarios. Whether you’re into FPV racing, acrobatic freestyle, or building your first high-speed quad, the QAV210 5-inch FPV drone frame kit provides a rock-solid foundation.

  ---

  🔧 Features of QAV210 5-inch Carbon Fiber FPV Racing Drone Frame:

  • Strong 3mm Carbon Fiber Arms:
     QAV210 FPV Racing Frame frame includes 3mm thick carbon fiber arms for maximum crash resistance. Perfect for demanding FPV environments where durability is key.

  • 210mm X-style Wheelbase:
    QAV210 FPV Racing Frame Compact yet spacious, the 210mm design supports standard 5” propellers and offers excellent maneuverability in tight courses and open freestyle areas.

  • Universal Component Compatibility:
    QAV210 FPV Racing Frame is Designed with a standard 30.5×30.5mm flight controller mounting pattern, the QAV210 FPV racing frame fits most ESC stacks, power distribution boards (PDBs), and flight controllers (F4/F7/AIOs).

  • Supports 22XX Motors:
    QAV210 FPV Racing Frame Fits motors such as 2205, 2206, and 2207 with a 16x19mm mount hole pattern, allowing for flexible power system options.

  • Lightweight Construction (~120g):
    Despite its strength, the frame remains lightweight, enabling high thrust-to-weight ratios and fast, nimble flight performance.

  • Adjustable FPV Camera Mount:
    The QAV210 5-inch FPV drone frame kit supports mini FPV cameras (like Runcam and Foxeer) with adjustable tilt angles for racing or cinematic views.

  ---

  📦 What’s Included in the QAV210 5-inch FPV Drone Frame Kit:

  • 4 × 3mm Carbon Fiber Arms

  • 2 × Carbon Fiber Top and Bottom Plates

  • Mounting hardware and standoffs

  • FPV camera side plates

  • Battery strap (varies by seller)

    What’s Included in the QAV210 5-inch FPV Drone Frame Kit – Detailed Breakdown

    ---

    1. 🦾 4 × 3mm Carbon Fiber Arms

    • Material: High-quality 3K carbon fiber

    • Thickness: 3mm for durability and crash resistance

    • Function: These arms hold the motors and connect them to the center frame body.

    • Strength Benefit: 3mm thickness makes them strong enough to survive heavy impacts, which is common in racing and freestyle.

    • Mounting: Standard motor mount pattern (16x19mm) supports 2204–2207 motors.

    ✅ Purpose: To securely mount the motors while withstanding torque and crash forces.

    ---

    2. 🧱 2 × Carbon Fiber Top and Bottom Plates

    • Material: Lightweight carbon fiber

    • Bottom Plate: Mounts the arms, flight controller stack, ESC, and other electronics

    • Top Plate: Covers the electronics, provides structure, and serves as the battery mounting surface

    • Mounting Holes: Typically includes 30.5×30.5mm holes for standard flight controllers and ESCs

    ✅ Purpose: Forms the main body of the drone; protects internal components and holds everything together structurally.

    ---

    3. 🔩 Mounting Hardware and Standoffs

    • Hardware Includes:

      • Steel or aluminum screws

      • Lock nuts or nylocks

      • Washers (sometimes)

    • Standoffs: Usually made of aluminum or nylon; used to separate and support the top and bottom plates

    • Customization Tip: Some kits include black or colored standoffs for aesthetics

    ✅ Purpose: Provides structural support, ensures spacing for electronics, and allows for clean assembly of the quad.

    ---

    4. 🎥 FPV Camera Side Plates

    • Material: Carbon fiber or plastic

    • Function: Mount to the front section of the frame and hold a mini FPV camera (e.g., Runcam Micro, Foxeer)

    • Adjustable Tilt: Many allow adjustable camera angles (typically 10°–45°) to match your flying style

    ✅ Purpose: Provides a solid and adjustable mounting system for the front-facing FPV camera — essential for visibility and control during flight.

    ---

    5. 🔋 Battery Strap (Varies by Seller)

    •  QAV210 FPV Racing Frame  Type: Velcro or buckle-style strap

    •  QAV210 FPV Racing Frame Usage: Secures the LiPo battery to the frame (either top-mounted or bottom-mounted)

    •  QAV210 FPV Racing Frame Length & Width: Varies; usually ~200mm long and 15–20mm wide

    •  QAV210 FPV Racing Frame Note: Some kits may include one strap, others may not include any — depends on the seller

    ✅ Purpose: Keeps the battery firmly attached during aggressive maneuvers and crashes.

    ---

    💡 Summary of Functionality:

    Component	Function
    Arms	Hold motors, absorb impact from crashes
    Top & Bottom Plates	Structural integrity, mount stack & protect electronics
    Hardware & Standoffs	Secure assembly, proper spacing for internal components
    Camera Plates	Hold FPV camera with adjustable angle for visibility during flight
    Battery Strap	Securely mounts battery to the frame

    ---

    ✅ Final Note:

  •

  • This  QAV210 FPV Racing Frame kit includes everything needed to build the physical structure of your drone. You’ll still need to add electronics like:

    • Motors (4x)

    • ESC (4x or 4-in-1)

    • Flight Controller

    • FPV camera and VTX

    • Receiver

    • 5” propellers

    • 4S or 6S LiPo battery

  ---

  ✅ Why Choose the QAV210 5-inch Carbon Fiber FPV Racing Drone Frame?

  • Built for serious FPV racing and freestyle flying

  • Strong and repairable modular design

  • Compatible with widely available motors and flight stacks

  • Supports both top and bottom battery mounting options

  • Easy to build and upgrade over time

  • Lightweight yet crash-tolerant structure

    1. 🏁 Built for Serious FPV Racing and Freestyle Flying

    The QAV210 5-inch Carbon Fiber FPV Racing Drone Frame is purpose-built for high-speed FPV racing and acrobatic freestyle flight. Its X-frame geometry provides perfect motor balance, enabling:

    • Quick flips, rolls, and sharp turns

    • Tight cornering on race tracks

    • Stable flight even under aggressive throttle

    This makes it ideal for competitive racing, as well as freestyle pilots who enjoy technical tricks and cinematic stunts.

    ---

    2. 🔧 Strong and Repairable Modular Design

    The QAV210 features a modular layout, meaning the arms and plates can be replaced individually. This is highly beneficial because:

    • If you crash and break a single arm, you don’t have to replace the whole frame.

    • Replacement parts are widely available.

    • 3mm thick carbon fiber arms are extremely strong and resistant to snapping under stress.

    This saves time and money during repairs, especially useful for beginners and racers who fly frequently.

    ---

    3. ⚙️ Compatible with Widely Available Motors and Flight Stacks

    The frame uses industry-standard mounting patterns:

    • Motor mounts: 16×19mm for 22XX brushless motors (e.g., 2205, 2206, 2207)

    • Flight Controller stack: 30.5×30.5mm (M3 holes), fits most F4/F7, AIO boards, and 4-in-1 ESCs

    This makes it very easy to find compatible parts without needing custom mounts or adapters. Whether you’re using budget components or premium racing gear, the QAV210 can support it.

    ---

    4. 🔋 Supports Both Top and Bottom Battery Mounting Options

    The QAV210 frame is flexible in how you mount your battery:

    • Top-mount: Better protection during crashes, easier access

    • Bottom-mount: Lowers center of gravity, improves stability and handling

    This gives you the freedom to customize your drone’s balance, flight characteristics, and safety based on your preference or flying style.

    ---

    5. 🧱 Easy to Build and Upgrade Over Time

    Because of its open-frame design and standard mounting sizes:

    • Wiring is simple and clean

    • You can easily add or remove components

    • Space is available for VTX, receivers, buzzers, and even action cameras (e.g., GoPro or Caddx)

    This makes the QAV210 5-inch FPV drone frame kit perfect for builders who want to start simple and upgrade later without switching frames.

    ---

    6. 🪶 Lightweight Yet Crash-Tolerant Structure

    Despite being tough, the frame is lightweight—approximately 120 grams without electronics. This helps:

    • Improve thrust-to-weight ratio, meaning faster take-off and more agile flight

    • Prolong battery life by reducing strain

    • Maintain durability due to high-strength 3K carbon fiber construction

    The result is a frame that can take hits without being bulky, keeping your quad nimble and protected during flight and crashes.

    ---

    ✅ Summary:

    The QAV210 FPV Racing Frameis a reliable, high-performance choice for both new and experienced FPV pilots. It’s strong, flexible, compatible, and easy to work with — a smart investment for anyone into FPV racing, freestyle tricks, or building custom drones.

  ---

  🎯 Best For:

  • FPV racing pilots

  • Freestyle drone builders

  • Intermediate to advanced drone hobbyists

  • DIY quadcopter enthusiasts using 4S–6S LiPo setups

  • Anyone seeking a reliable 5-inch FPV racing drone frame

    🏁 FPV Racing Pilots

    The QAV210 frame is specifically designed for high-speed, competitive FPV racing. Its 210mm wheelbase fits 5-inch propellers, which are the industry standard for racing drones. The X-style frame geometry provides balanced motor placement, resulting in:

    • Symmetrical thrust for precise control

    • Fast cornering with less yaw drift

    • Lightweight carbon fiber build for improved speed and agility

    • Minimal air drag for faster acceleration

    ✅ Why it’s ideal: FPV racers need speed, sharp response, and durability — the QAV210 delivers all three.

    ---

    🎯 Freestyle Drone Builders

    Freestyle flying involves tricks like rolls, flips, dives, and tight proximity flying around obstacles. The QAV210 frame supports this with:

    • Durable 3mm carbon fiber arms that can handle crashes

    • Mounting space for HD cameras (like GoPro, Runcam, or Insta360)

    • Flexible battery and component layout to shift the center of gravity

    • Stable yet responsive flight characteristics

    ✅ Why it’s ideal: Freestyle pilots want a crash-resistant frame that can still move like a feather — QAV210 offers the perfect balance.

    ---

    🧰 Intermediate to Advanced Drone Hobbyists

    More experienced drone builders want a frame that’s:

    •  QAV210 FPV Racing Frame is Easy to customize

    •  QAV210 FPV Racing Frame Upgradable

    •  QAV210 FPV Racing Frame Compatible with standard electronics

    •  QAV210 FPV Racing Frame Reliable over time

     QAV210 FPV Racing Frame checks all these boxes by offering a modular design, support for various ESCs/FCs, and solid construction. Hobbyists can use it for:

    •  QAV210 FPV Racing Frame Learning PID tuning

    •  QAV210 FPV Racing Frame Testing different motor/prop combinations

    •  QAV210 FPV Racing Frame Adding accessories like buzzers, LEDs, or GPS modules

    ✅ Why it’s ideal: It’s great for enthusiasts who know what they want and need a flexible frame to grow with them.

    ---

    🛠️ DIY Quadcopter Enthusiasts Using 4S–6S LiPo Setups

     QAV210 FPV Racing Frame designed to support powerful motors (2205/2206/2207) and high-discharge batteries (4S–6S). This makes it suitable for builds with:

    • High KV motors and larger ESCs

    • 1300mAh–1500mAh 4S or 6S LiPo batteries

    • High-speed performance or aggressive freestyle setups

    The carbon fiber frame is strong enough to handle the increased thrust and torque from high-voltage builds without flexing or breaking.

    ✅ Why it’s ideal: For those who like to tinker and build performance quads, this frame is strong, spacious, and power-hungry friendly.

    ---

    ✅ Anyone Seeking a Reliable 5-inch FPV Racing Drone Frame

    Even if you’re not a hardcore racer or freestyler, the QAV210 5-inch FPV racing frame is a fantastic all-around choice. It’s:

    •  QAV210 FPV Racing Frame Affordable

    •  QAV210 FPV Racing Frame Easy to repair

    •  QAV210 FPV Racing Frame Compatible with most motors, stacks, and cameras

    •  QAV210 FPV Racing Frame Backed by a large community (lots of tutorials, replacement parts, and support)

    ✅ Why it’s ideal: It’s one of the most versatile and proven 5-inch frames for both beginners and veterans in the FPV community.

  ---

  Whether you’re building your first racing quad or upgrading your freestyle rig, the QAV210 5-inch Carbon Fiber FPV Racing Drone Frame delivers unbeatable performance, flexibility, and durability. Take your flight to the next level with a frame trusted by FPV pilots worldwide.

Why Choose Lofty AgroTech?

When building or servicing agricultural drones in India, Lofty AgroTech stands out as a reliable and innovative partner. Here’s a comprehensive breakdown of why we choose Lofty AgroTech:

1️⃣ DPIIT-Recognized Innovation

• Lofty AgroTech is officially recognized by the Department for Promotion of Industry and Internal Trade (DPIIT), Govt. of India.
  🏅 This certification ensures quality, credibility, and government endorsement as a genuine Indian AgriTech innovator.

2️⃣ Tailored for Indian Farming Conditions

• Their drone components—including GPS modules, landing gear, frames, and spraying systems—are designed and tested for Indian climates:

  • Heat, dust, and humidity-resistant

  • Compatible with crops like paddy, cotton, and sugarcane

• Engineered specifically for Indian fields, not generic imports.

3️⃣ Complete Hardware Ecosystem

• Lofty AgroTech provides GPS modules, drone frames, landing gear, sprayer accessories, flight controllers, and telemetry—all under one roof.

• Ideal for building integrated systems that work seamlessly together from day one.

4️⃣ Plug-and-Play Convenience

• Products like the NZ Mini GPS Module are pre-configured for Betaflight/Cleanflight, and hardware parts fit standard UAV systems perfectly.

• No firmware flashing or awkward adapters—just plug, play, and fly.

5️⃣ Strong Local Support & Spare Parts

• Fast shipping across India without customs delays.

• Dedicated after-sales support via phone or chat—real help when you’re in the field or repairing.

• Access to common spares, making downtime less likely.

6️⃣ Academic & Startup Partnerships

• Lofty AgroTech collaborates with colleges, R&D centers, and agri-tech startups, providing drone kits, hardware training, and workshops.

• Their products are trusted in STEM labs, contests, innovator incubators, and proof-of-concept tests.

7️⃣ Proven Quality & Real-World Performance

• Uses industrial-grade components like u‑blox GPS chips, carbon fiber, and rugged nylon.

• Field-tested in Indian conditions to ensure reliability for crop spraying, mapping, and monitoring.

8️⃣ Educator & Builder-Friendly

• Their hardware encourages hands-on learning and experimentation without requiring advanced drone expertise.

• Ideal for drone clubs, agricultural training, hobbyist builders—even first-time users.
