S550 Hexacopter Frame

Description

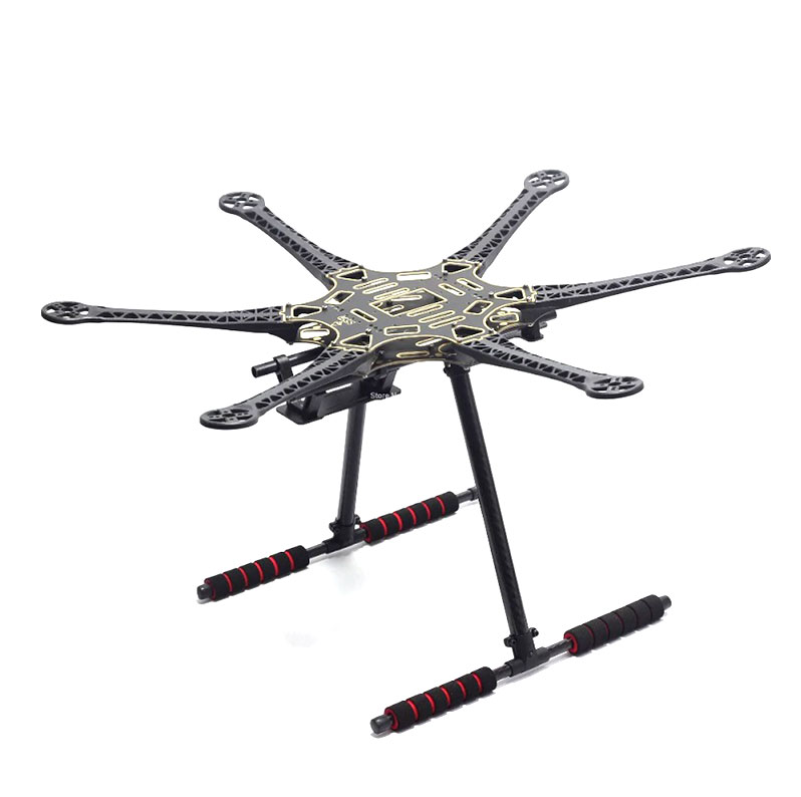

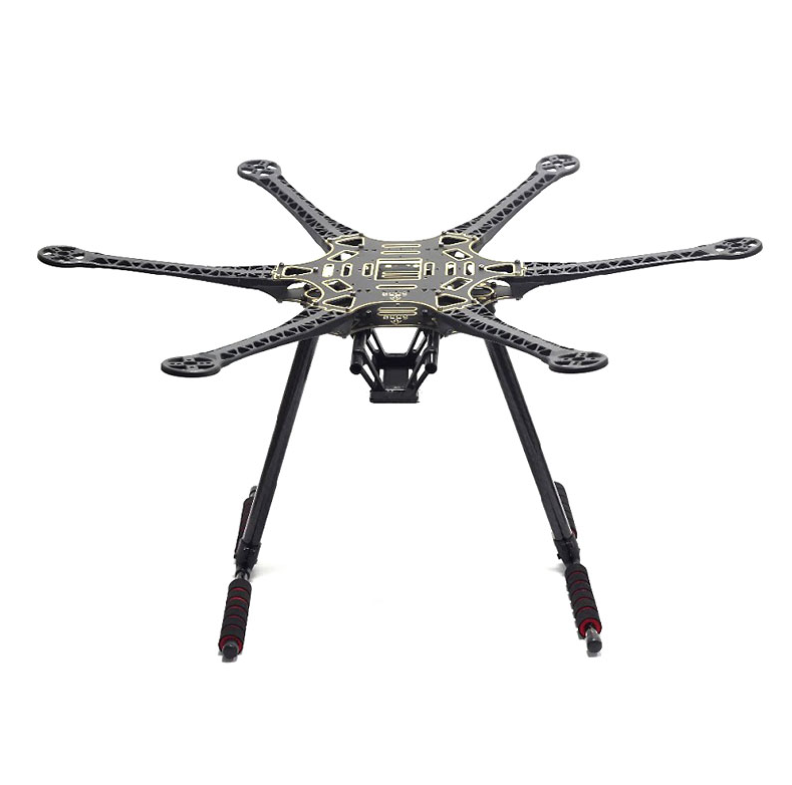

S550 Hexacopter Frame by LOFTY AGROTECH

The S550 Hexacopter Frame is designed for superior performance, offering enhanced power, stability, and efficiency over traditional quadcopters. With six arms and additional motors, this hexacopter provides greater thrust, extended flight time, and enhanced safety, ensuring a seamless flying experience. Its lightweight yet durable design makes it a reliable choice for enthusiasts and professionals alike.

One of the most significant advantages of this hexacopter frame is its redundancy and safety features. In case of motor failure, a quadcopter would immediately crash, but the S550 Hexacopter is capable of maintaining flight with one or even two motors down, offering an extra layer of security during operations.

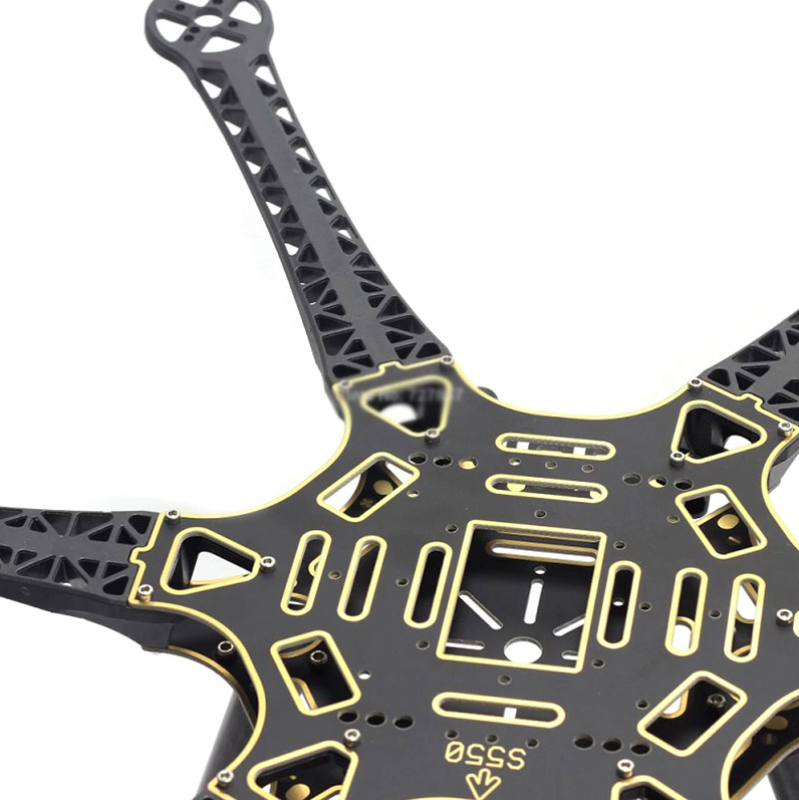

Constructed from high-quality engineering materials, the frame ensures durability while keeping the overall weight low. The integrated PCB (Printed Circuit Board) allows for direct ESC soldering, eliminating the need for an additional Power Distribution Board (PDB). This feature simplifies assembly and results in a cleaner and more efficient build.

The S550 frame kit includes carbon fiber landing gear, further enhancing its lightweight structure and robustness. The frame has a wheelbase of 550mm and weighs around 760 grams, making it ideal for carrying larger payloads such as camera systems, sensors, and other electronics. This makes the S550 an excellent choice for aerial photography, videography, and FPV applications.

With pre-threaded brass sleeves, assembling the hexacopter is quick and hassle-free. The frame is designed to support a variety of motors with mounting hole centers of 16mm, 19mm, and 25mm, ensuring broad compatibility. Additionally, the large mounting tabs at the front and rear ends make it easy to install cameras and other accessories.

Key Features:

• Superior Stability & Redundancy: Can continue flying even with motor failure.
• Lightweight & Durable: Engineered from high-quality materials.
• Integrated PCB: Neat and easy wiring for ESCs.
• Easy Assembly: Pre-threaded brass sleeves for quick installation.
• Universal Compatibility: Supports multiple motor and propeller options.
• Extended Payload Capacity: Ideal for carrying cameras and other equipment.

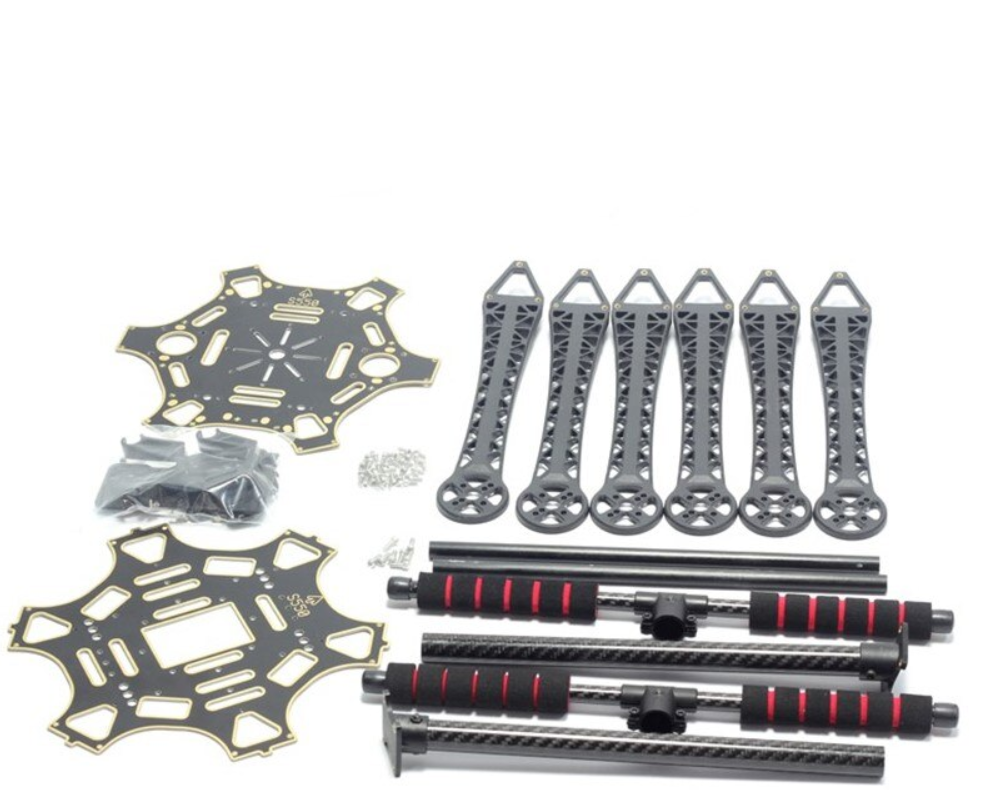

Package Includes:

• 1 x S550 Hexacopter Frame (Top and Bottom) with PCB soldered centerboard
• 6 x S550 arms
• Landing gear setup & accessories set

Recommended (Not Included):

• Motors: 2212 KV980, 2216 KV880/KV900, 3108 KV720/KV900
• Propellers: 8038, 9047, 1038, 1045, 1047
• Battery: 3S-4S, 2200mAh-5200mAh

Specifications:

• Model Name: S550
• Item Type: Hexacopter Frame
• Color: Black
• Wheelbase: 550mm
• Arm Size: 235×42 mm
• Landing Gear Height: ~250 mm
• Landing Gear Color: Black
• Landing Gear Weight: 100g (both)
• Frame Weight: 760g
• Shipping Weight: 1.1kg
• Shipping Dimensions: 29 × 24 × 7 cm

For a full range of multi-rotor accessories, including motors, ESCs, Li-PO batteries, flight controllers, FPV cameras, gimbals, propellers, and remotes, Click Here.

If you’re a beginner or looking for a quick and easy build, explore our Multirotor Kits to get your drone airborne without hassle. Click Here.

Note: The dimensions and weight may have a ±2% error.
