VT400 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB

  • High-quality frame built from glass fiber and polyamide nylon

  • Integrated PCB for direct ESC soldering (no power distribution board required)

  • Color-coded arms for better orientation during flight

  • Pre-threaded brass sleeves for easy, tool-efficient assembly

  • Compatible with standard 50mm controller boards (MK, KK, FF, MWC)

  • Ideal for stable camera mounts with extra mounting space

  • Designed & Made in India

Product Code: NDFA37 Categories: , Tags: , , , , , , , , , , , , ,

Description

The VT400 Quadcopter Frame – PCB Version Frame Kit, now offered under NDK21 BY LOFTY AGROTECH, is a highly reliable 450mm quadcopter frame built for durability, efficiency, and ease of assembly. This F450 frame features an integrated PCB board that simplifies wiring by allowing direct soldering of your ESCs, eliminating the need for a separate power distribution board. This not only reduces wiring complexity but also ensures a clean and tidy setup for your electronics.

Constructed with high-quality glass fiber and ultra-durable polyamide nylon arms, this frame delivers excellent strength while maintaining a lightweight profile. The tri-color design (orange and green arms) enhances visual orientation during flight, making it easier to distinguish front and back while navigating.

Thanks to pre-threaded brass sleeves, assembling this frame is straightforward and does not require lock nuts. The frame supports standard 50mm controller boards like MK, KK, FF, and MWC. Additionally, the bottom plate includes large mounting tabs for easy installation of cameras or other payload accessories.

Designed and manufactured in India, this frame is an excellent choice for beginners and advanced drone builders alike, offering both performance and quality.

 Click here to explore more or purchase from NDK21 BY LOFTY AGROTECH.

Specifications :

  • Frame Type: Quadcopter Frame Kit

  • Model: VT400 (F450 Equivalent)

  • Frame Width: 450 mm

  • Frame Height: 55 mm

  • Weight: 270 grams

  • Material: Glass fiber mainframe with polyamide nylon arms

  • Board Type: Integrated PCB for direct ESC soldering

  • Compatible Flight Controllers: Standard 50mm boards (MK, KK, FF, MWC)

  • Arm Colors: Orange (2), Green (2) – for easy orientation

  • Assembly: Pre-threaded brass sleeves – no lock nuts required

  • Mounting: Large bottom plate tabs for camera and accessory mounting

  • Design: Stronger molded arms to withstand hard landings

  • Manufacturing Origin: Made in India

  • Shipping Weight: 0.3 kg

  • Shipping Dimensions: 20 × 15 × 5 cm

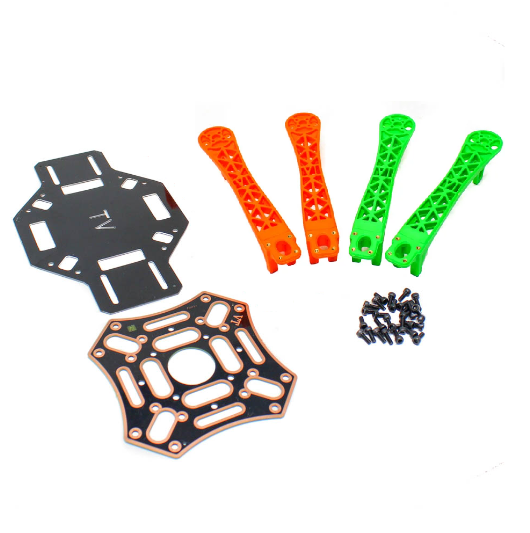

Package Includes :

  • 1 x F450 Tri-color VT400 Quadcopter Frame (Made in India)

  • 1 x Integrated PCB Board

  • 2 x Orange Arms

  • 2 x Green Arms

  • 1 x Set of Screws and Fasteners
