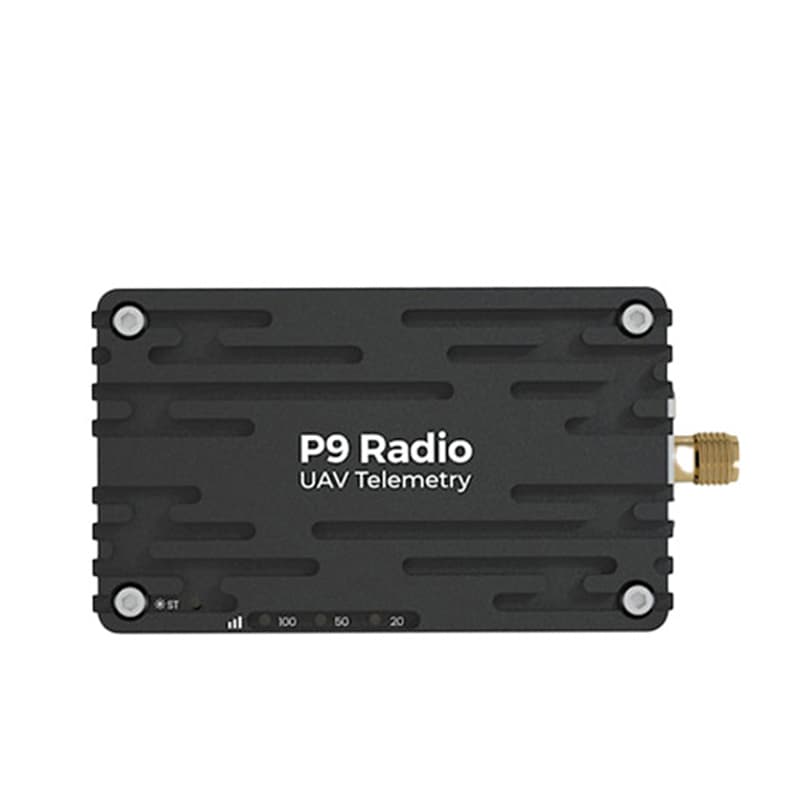

CUAV P9 Radio Sky unit

Model: CUAV P9 Transmission Distance: Up to 40 km for long-range communication. Data Rate: High transmission rate of 276kbps. Communication Modes: Supports point-to-multiple and relay communication. Battery Compatibility: Accepts 3S-12S battery input (12V-60V).

Specifications

Model	CUAV P9
Transmission Distance	Up to 40 km for long-range communication.
Data Rate	High transmission rate of 276kbps.
Communication Modes	Supports point-to-multiple and relay communication.
Battery Compatibility	Accepts 3S-12S battery input (12V-60V).
Model Name:	CUAV P9
Frequency Band	902-928MHz
Error Detection/Control	Hamming, BCH, Golay, Reed-Solomon, Viterbi, 32 bits of CRC, ARQ
Frequency	Up to 40 km
Sensitivity dBm	-109dBM@115.2kbps, -108dBm@172.8kbps, -106dBm@230.4kbps
Max Transmit Power	100mw~1000mw(20~30dBm）； default：1000mW
Antenna Gain	3dBi
Baud Rate (bps)	300bps to 230kbps(57600)
Operating Mode	Point-to-Point,Repeat Mode
Input Voltage (V):	12V-60V
Input current	>2.5A
Current Consumption (mA):	Sleep: < 1 mA, Idle: < 20 mA, RX :45~98mA, TX(peak):2A
Antenna Interface	SMA inner needle, Power: XT30PW-M
USB	USB Type-C
Operating Temperature (°C):	-40℃～85℃
Serial	GHR-06V-S
Battery	3S-12S Lipo
Shipping Weight	0.26 kg
Shipping Dimensions	22 × 11 × 5 cm
