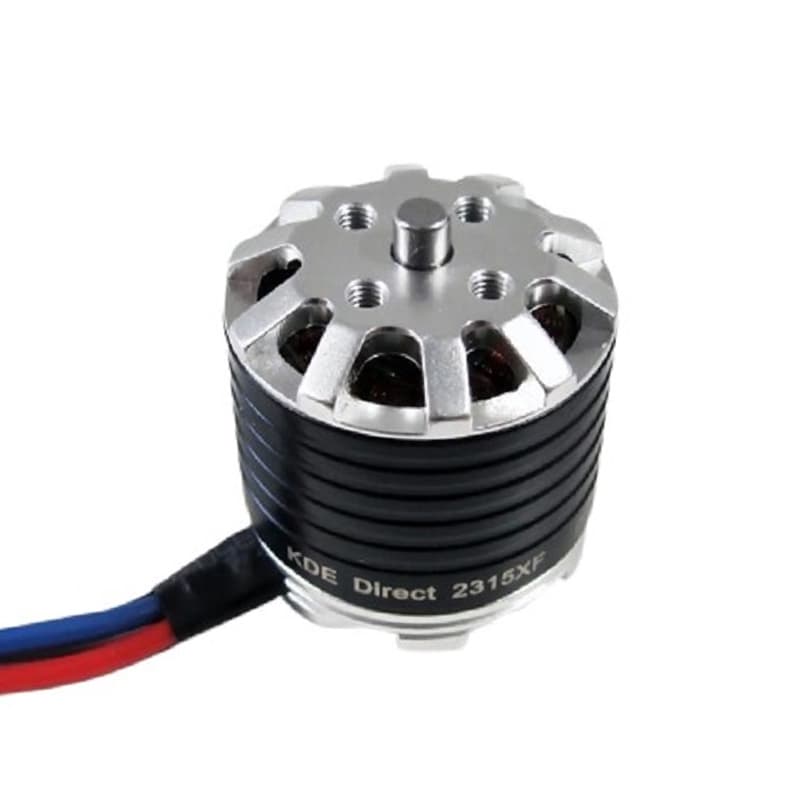

KDE - 2315XF-965 KV Brushless Motor for Electric Multi-Rotor(sUAS) Series

Timing: 22° - 30° Drive Frequency: 16 - 32 kHz Kv: 965 RPM/V Kt: 0.0099 Nm/A Km: 0.0310 Nm/√(W) Rotor Inertia: 0.041 kg*cm² Mount Patterns: M3 x ф19 mm, M2.5 x ф16 mm, M3 x ф16/19 mm

Specifications

Timing	22° - 30°
Drive Frequency	16 - 32 kHz
Kv	965 RPM/V
Kt	0.0099 Nm/A
Km	0.0310 Nm/√(W)
Rotor Inertia	0.041 kg*cm²
Mount Patterns	M3 x ф19 mm, M2.5 x ф16 mm, M3 x ф16/19 mm
Motor Type:	Brushless Motor
Motor KV (RPM/V):	965
Material:	Neodymium N45UH
Continuous Current (A):	26 A (180 s)
Power Rating:	385 W (180 s)
Voltage Range (V)	11.1 V (3S LiPo) - 17.4 V (4S LiHV)
No. of Stator Poles	12 (12S14P)
Bearing	Triple, MR84ZZ, MR104ZZ
Shaft Diameter	ф4 mm (ф4 mm Internal)
Shaft Length	3.5 mm
Motor diameter	ф28.3 mm
Motor Length (mm):	28.5 mm
Propeller	Up to 12" (11" Maximum on 4S)
Motor Weight (g)	64 g
Shipping Weight	0.204 kg
Shipping Dimensions	8 × 10 × 9 cm
