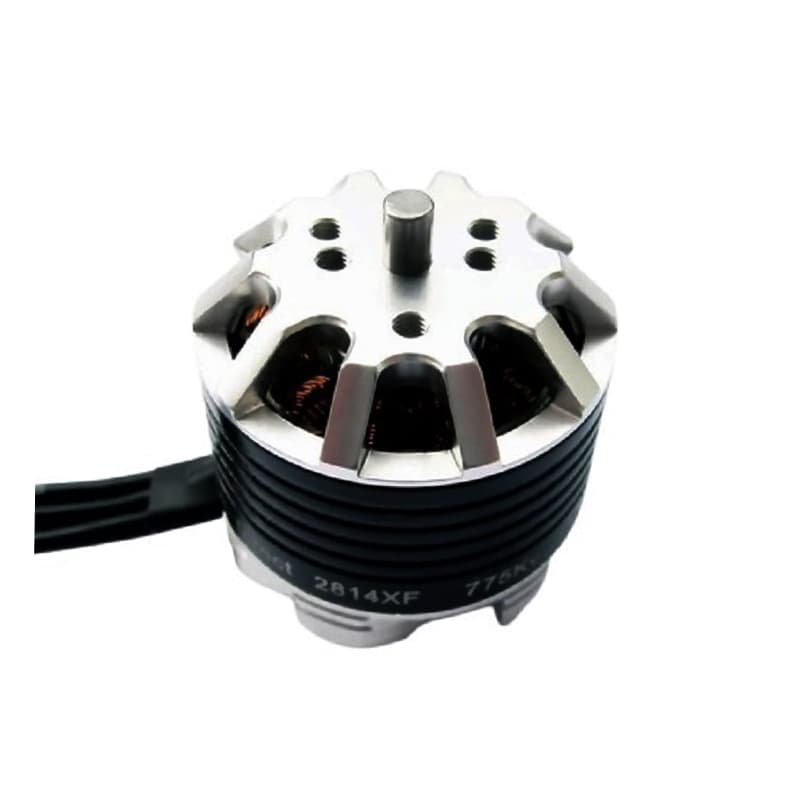

KDE - 2814XF-775 KV Brushless Motor for Electric Multi-Rotor(sUAS) Series

Timing: 22° - 30° Drive Frequency: 16 - 32 kHz Kv: 775 RPM/V Kt:0.0123 Nm/A Km: 0.0469 Nm/√(W) Rotor Inertia: 0.093 kg*cm^2 Mount Patterns:M3 x ф25 mm, M3/2.5 x ф19 mm

Specifications

Timing	22° - 30°
Drive Frequency	16 - 32 kHz
Kv	775 RPM/V
Kt	0.0123 Nm/A
Km	0.0469 Nm/√(W)
Rotor Inertia	0.093 kg*cm^2
Mount Patterns	M3 x ф25 mm, M3/2.5 x ф19 mm
Motor Type:	Brushless Motor
Motor KV (RPM/V):	775
Material:	Neodymium N45UH
Continuous Current (A):	36 A (180 s)
Power Rating:	535 W (180 s)
Voltage Range (V)	11.1 V (3S LiPo) - 21.8 V (5S LiHV)
No. of Stator Poles	12 (12S14P)
Bearing	Triple, 684ZZ, 624ZZ
Shaft Diameter	ф4 mm (ф4 mm Internal)
Shaft Length	5.5 mm
Motor diameter	ф35.5 mm
Motor Length (mm):	28.5 mm
Propeller	Up to 15.5"-DP (12.5"-TP Maximum on 4S)
Motor Weight (g)	95 g
Shipping Weight	0.288 kg
Shipping Dimensions	8 × 10 × 10 cm
