| KV Rating | 400KV (RPM per Volt) |
|---|---|
| No Load Current | 0.22A @ 20V |
| Max Thrust | Up to 1.1 kgf |
| Efficiency | Greater than 74% |
| Motor KV (RPM/V): | 400KV |

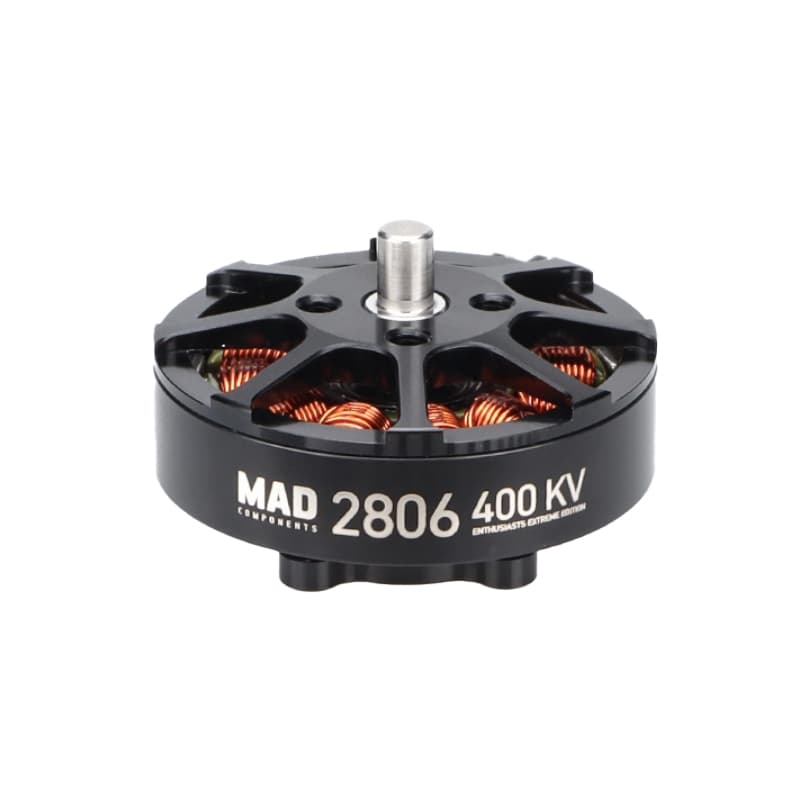

| Motor Type: | Brushless Outrunner |
| Model No: | 2806 |
| Model: | MAD 2806 EEE |
| Compatible LiPO Batteries: | 6S (22.2V) |
| Framework | 2806 |
| Shaft Diameter (mm): | 4 |
| Motor Outer Diameter(mm) | 35 |
| Max. Efficiency Current (A) | 20 to 30 |
| Max. Power (W) | ~850 |
| Maximum Thrust (gm) | Up to 1700g (with 8" props on 6S) |
| No-load current (A) | 0.22 @ 20V |
| No-Load Current (mA) | 220 |
| Operating Temperature (°C): | Max 45°C |
| Motor Size (mm): | D:35 × 19.8 |
| Weight (g): | 44(Each) |
| Shipping Weight | 0.45 kg |
| Shipping Dimensions | 11.5 × 11.5 × 9 cm |
