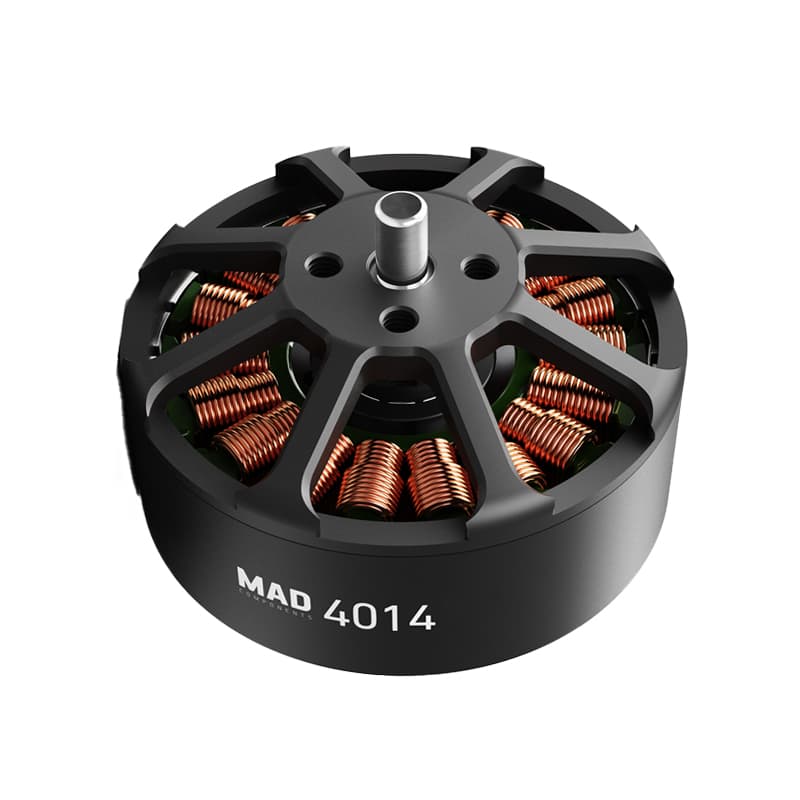

MAD 4014 EEE Brushless Motor 370KV (Pack Of 2)

1–1.5 kg payload 6S battery support Max Thrust per Rotor : Approx. 3.1 kg Mounting Specs :Shaft: 5 mm; Holes: D25 M3×4, D32 M2.5×3 Propeller Recommendations:15×5.0, 16×5.4, 17×5.8

Specifications

Max Thrust per Rotor	Approx. 3.1 kg
Mounting Specs	Shaft: 5 mm; Holes: D25 M3×4, D32 M2.5×3
Propeller Recommendations	15×5.0, 16×5.4, 17×5.8
Motor Type:	EEE Brushless Motor
Model No:	4014
Motor KV (RPM/V):	370
Compatible LiPO Batteries:	6S
Shaft Diameter (mm):	5
Motor Outer Diameter(mm)	45
Max. Power (W)	507
Maximum Thrust (gm)	3100
No-load current (A)	0.91
No-Load Current (mA)	910
No of poles	14
Torque:	0.636 Nm
Motor Size (mm):	D:44.9 × 39.9
Propeller Mount Holes	Size-D:12 M3×4
Bearing	EZO 685ZZ*1 / EZO 695ZZ*1
Cable	600 mm 18# Awg(Black) silicone
Motor Mount Holes	D:25 M3×4, D:32 M2.5×3
Weight (g):	120(each)
Shipping Weight	0.496 kg
Shipping Dimensions	11 × 11 × 7 cm
